Phasor™ VSD Transformer

Description

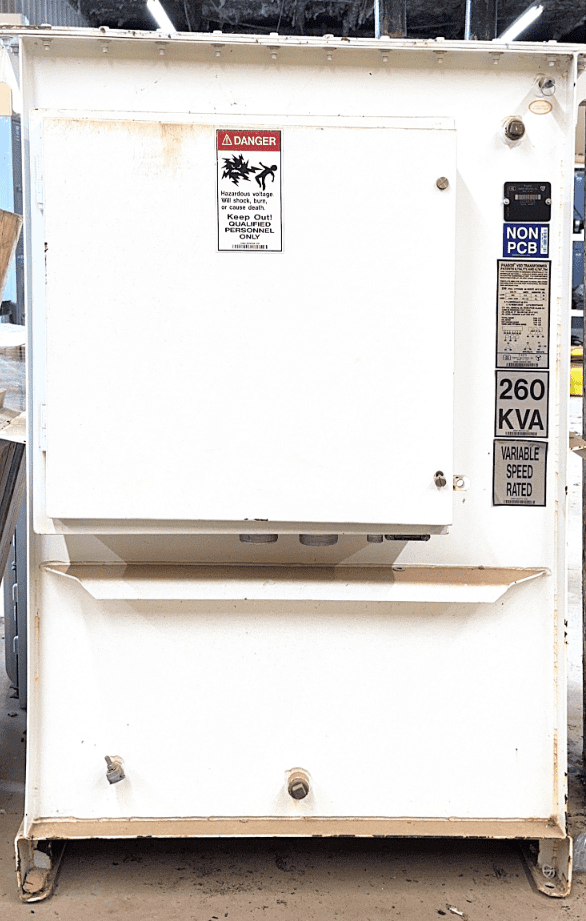

Introducing the Phasor™ VSD Transformer by TAPS – Howard Industries, Inc., proudly manufactured in the USA. This advanced electrical transformer is meticulously crafted to optimize the performance of variable speed drives (VSDs) with electric submersible pumps, offering unparalleled efficiency and reliability in industrial applications.
Patents 6,734,722 and 6,787,704

Key Features

• Versatile Application: Designed for seamless integration between variable speed drives and electric submersible pumps, suitable for step-up applications.
• Robust Construction: Built to endure demanding environments, the Phasor™ VSD Transformer boasts a sturdy 260KVA capacity with 3-phase operation at 60 Hertz and a 65°C temperature rise, ensuring consistent performance under varying load conditions.
• Precision Engineering: Featuring a low impedance of 3.1% at 85°C, coupled with 1.7% resistance and 2.6% reactance, this transformer delivers precise voltage regulation critical for industrial operations.
• Safety and Compliance: Compliant with rigorous safety standards, including a 30 BIL (Basic Insulation Level) rating for low voltage and 60 BIL for high voltage, ensuring safe and reliable operation in diverse industrial settings.
• Environmentally Conscious: Filled with 174 gallons of mineral oil classified as NON-PCB CLASS OA, the transformer’s tank is designed to withstand up to 7 PSIG pressure, with a user-friendly oil level system that adjusts efficiently with temperature variations.

Technical Specifications

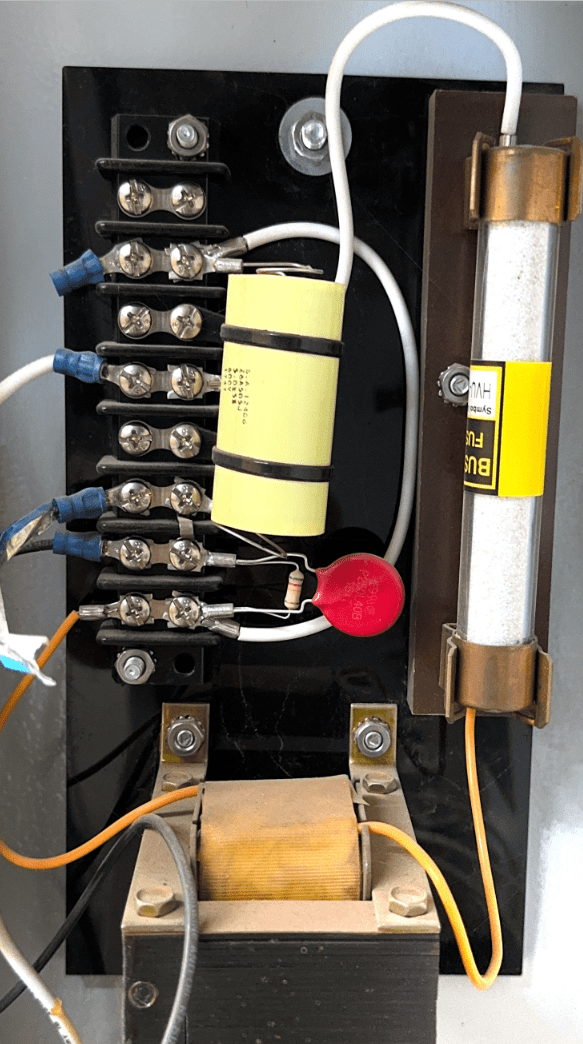

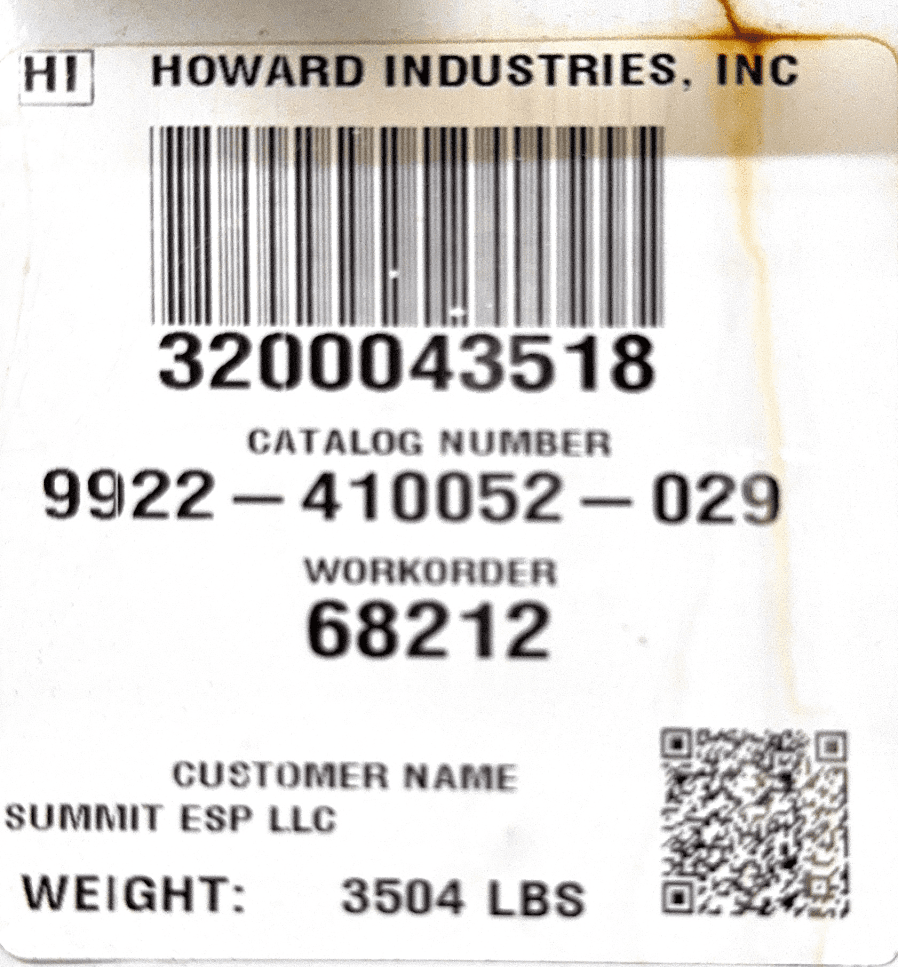

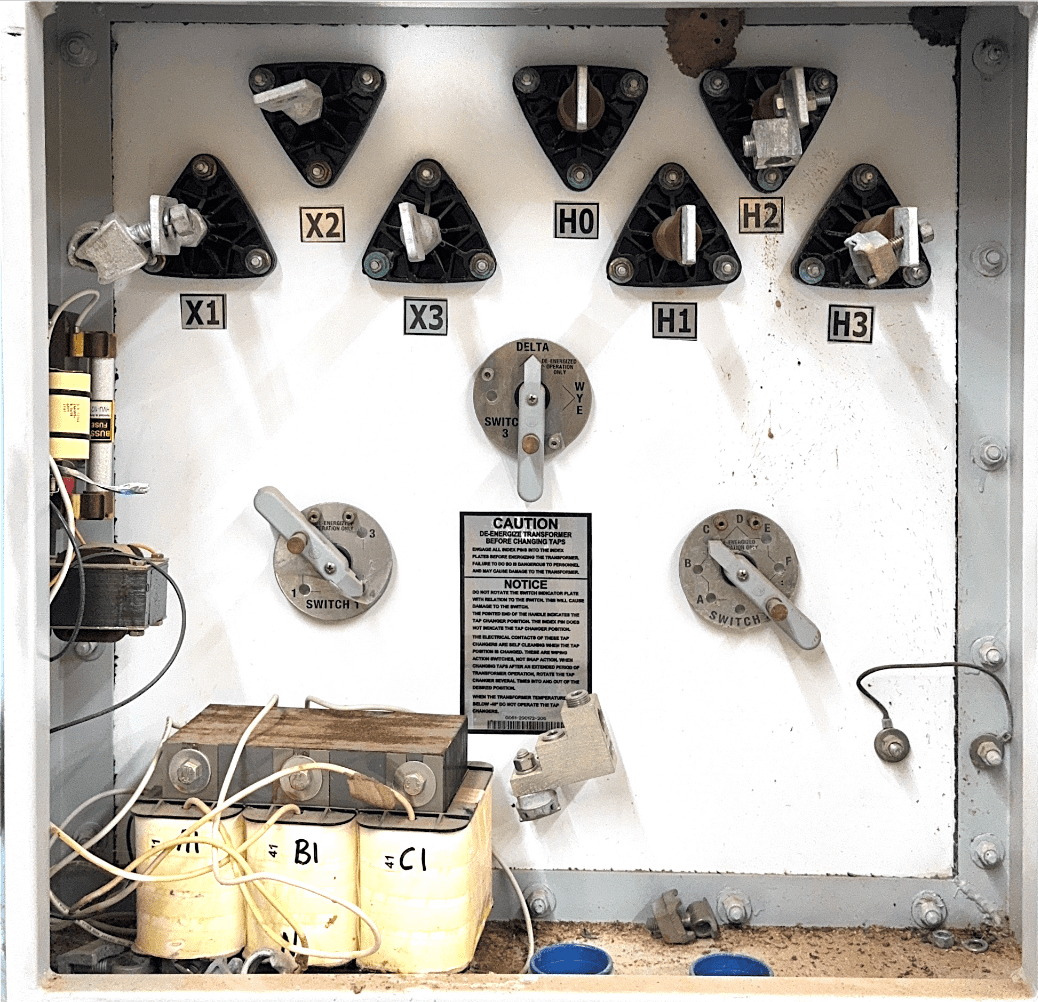

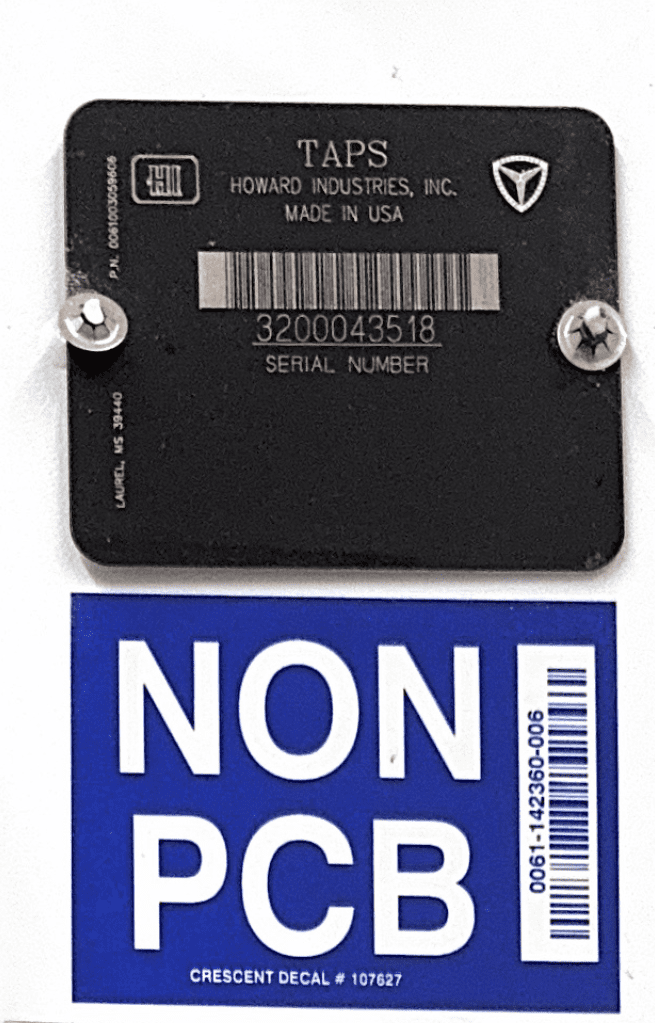

Serial Number: 3200043518
Laurel, MS 39440

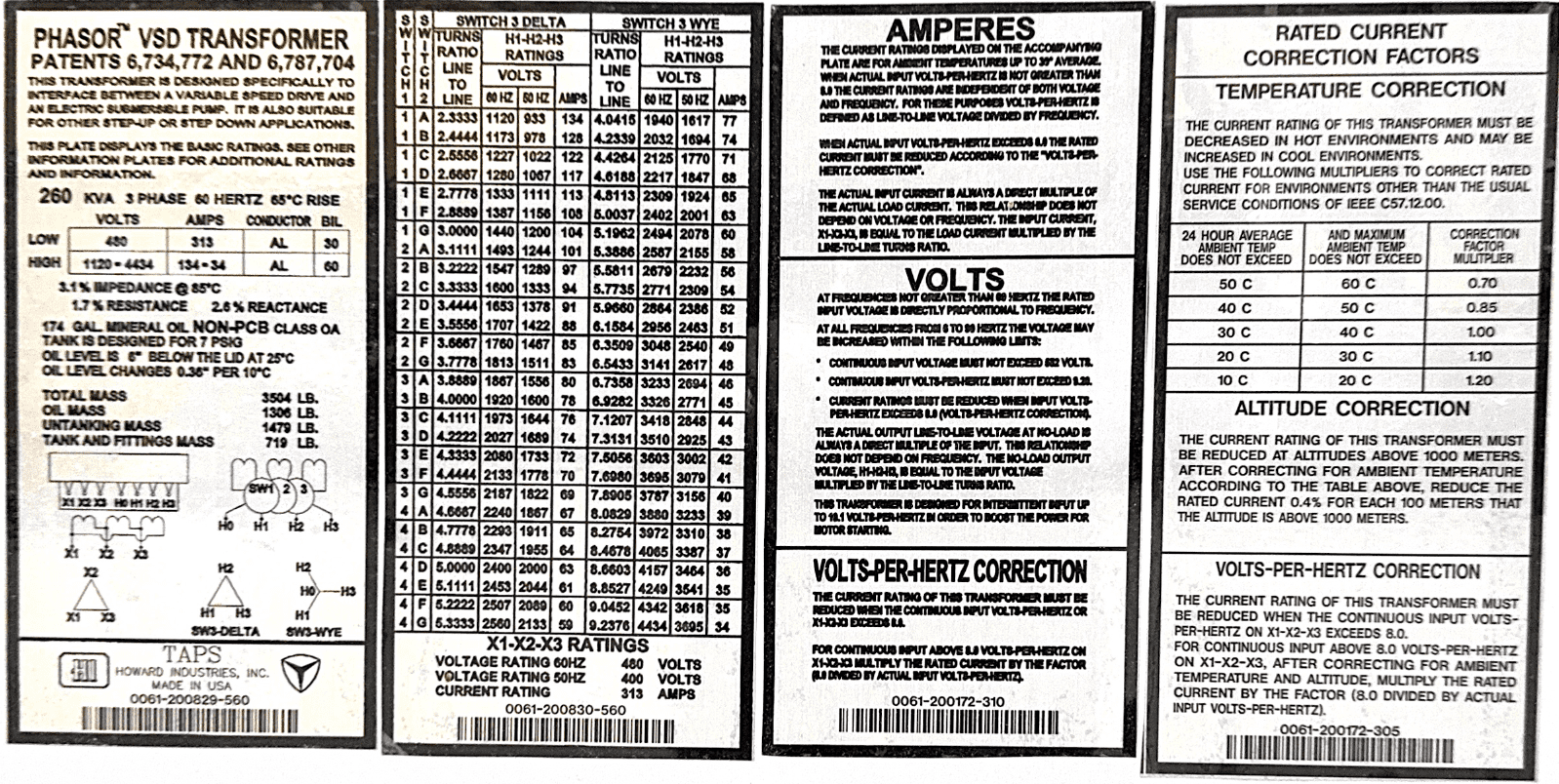

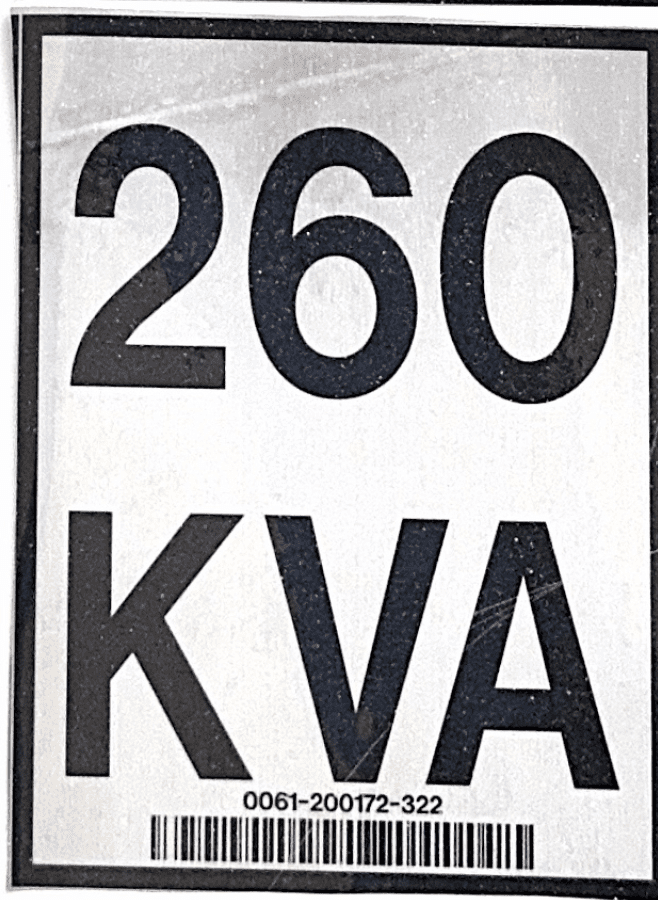

260KVA – 3 phase – 60 Hertz – 65°C Rise

3.1% Impedance @ 85°C

1.7% Resistance – 2.6% Reactance

174 Gal Mineral Oil NON – PCB CLASS OA

Tank is designed for 7 PSIG

Oil level is 6″ below the lid at 25°C

Oil level changes 0.36″ per 10°C

• Total Mass: 3504lb
• Oil Mass: 1306lb
• Untanking Mass: 1479lb
• Tank and Fittings Mass: 719lb

See other photos for information on altitude, temperatures, switch charts, and more.

Why Choose the Phasor™ VSD Transformer:

Engineered by industry leader TAPS – Howard Industries, Inc., this transformer is the pinnacle of reliability and efficiency in electrical submersible pump applications. Whether you’re looking to enhance operational efficiency, compliance with stringent safety regulations, or to optimize industrial processes, the Phasor™ VSD Transformer stands ready to exceed your expectations.

For individuals and businesses in machinery, technology, agriculture, construction, and related industries, investing in the Phasor™ VSD Transformer means investing in long-term performance and reliability.

Explore more about how the Phasor™ VSD Transformer can transform your operations. Contact us today to learn how this exceptional product can meet your specific industrial needs.

Product Attachments – From the Manufacturer

1. Outline Drawing

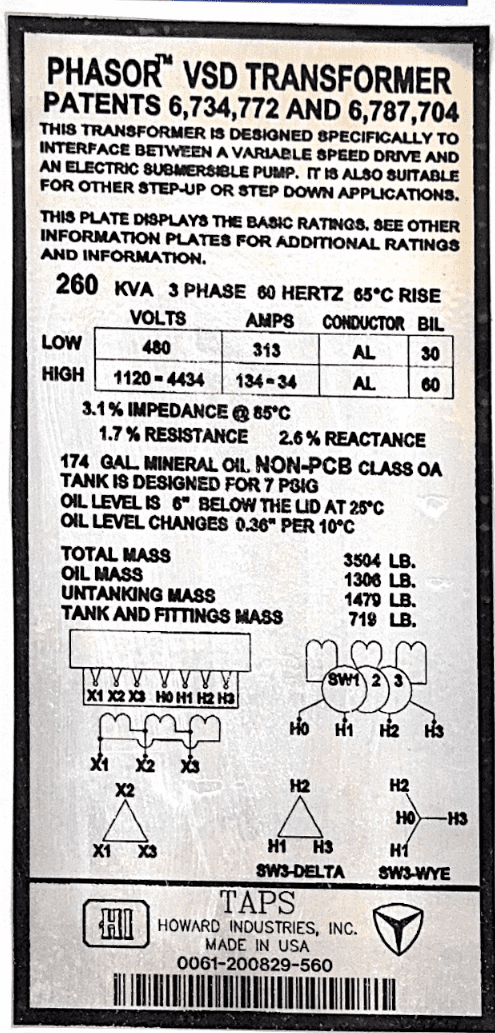

2. TAPS VSD Nameplate 1
3. TAPS VSD Nameplate 2
4. Other KVA Sizes and Voltages
