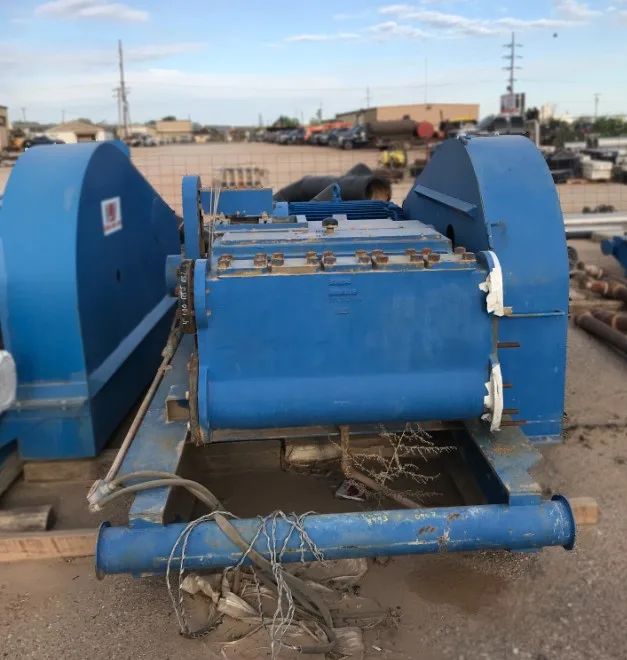

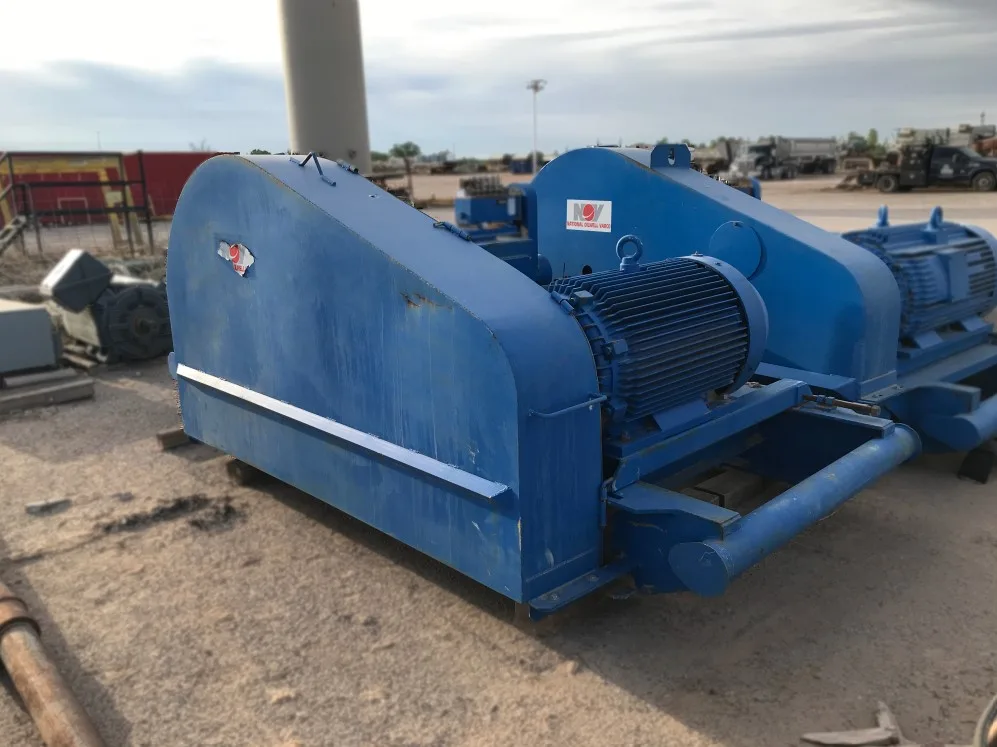

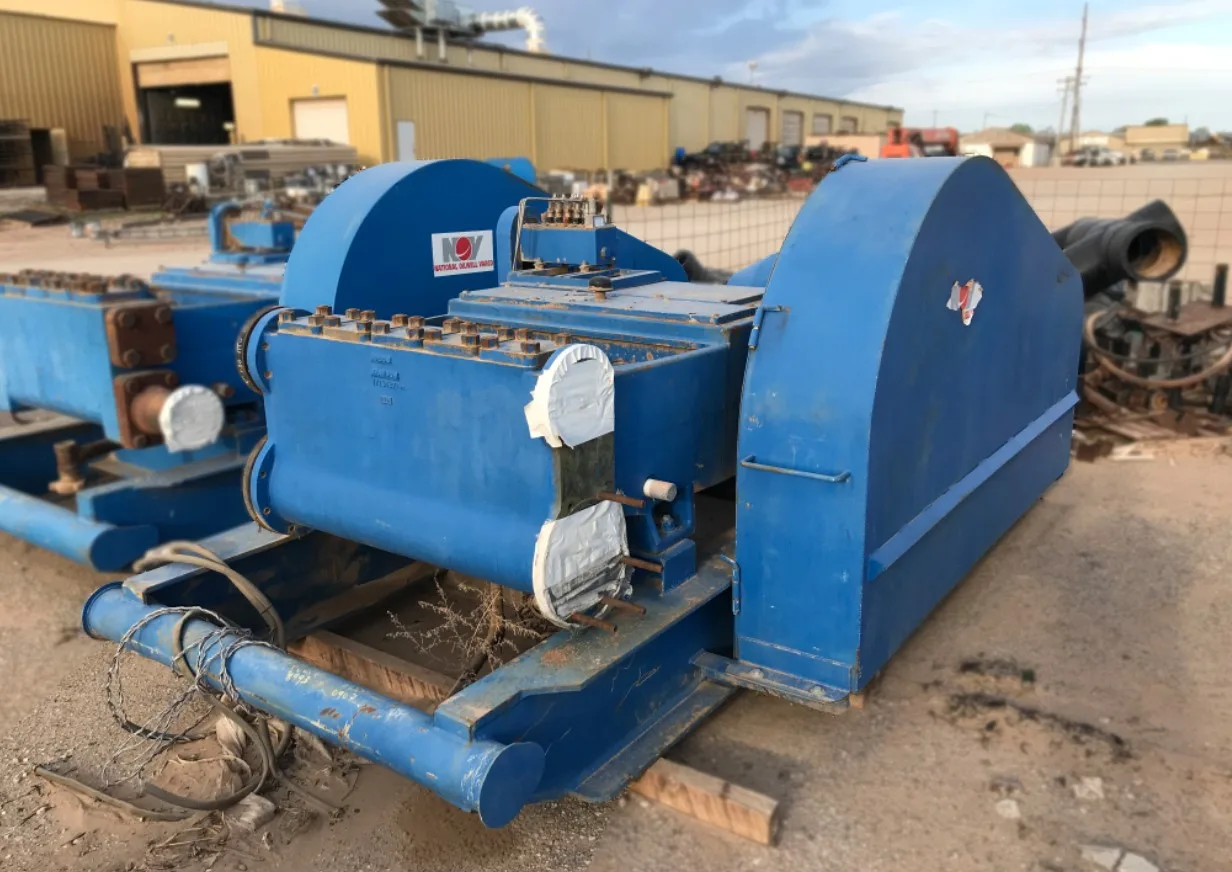

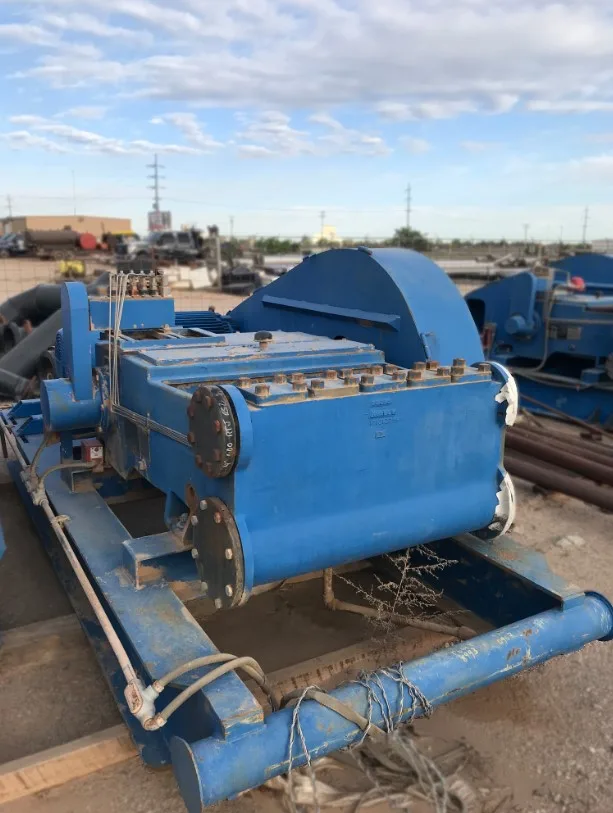

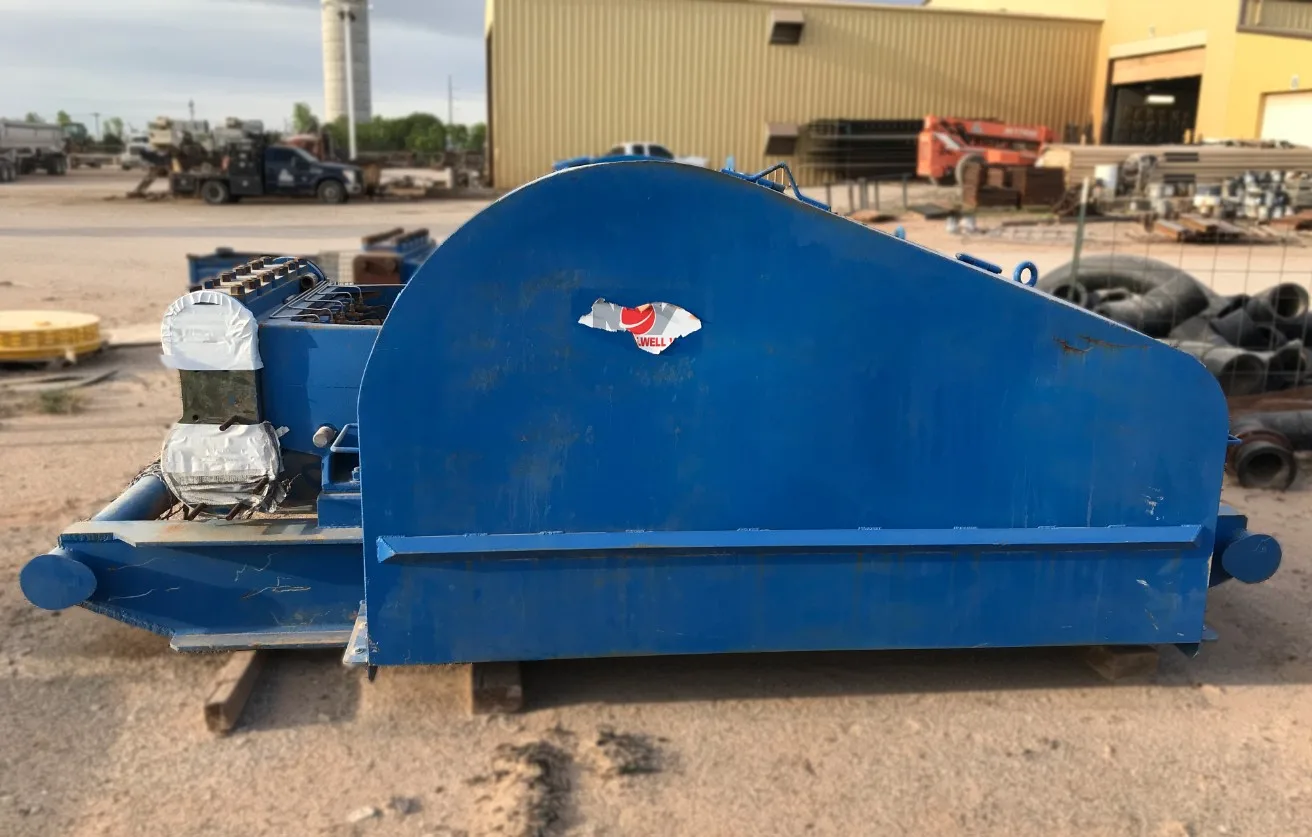

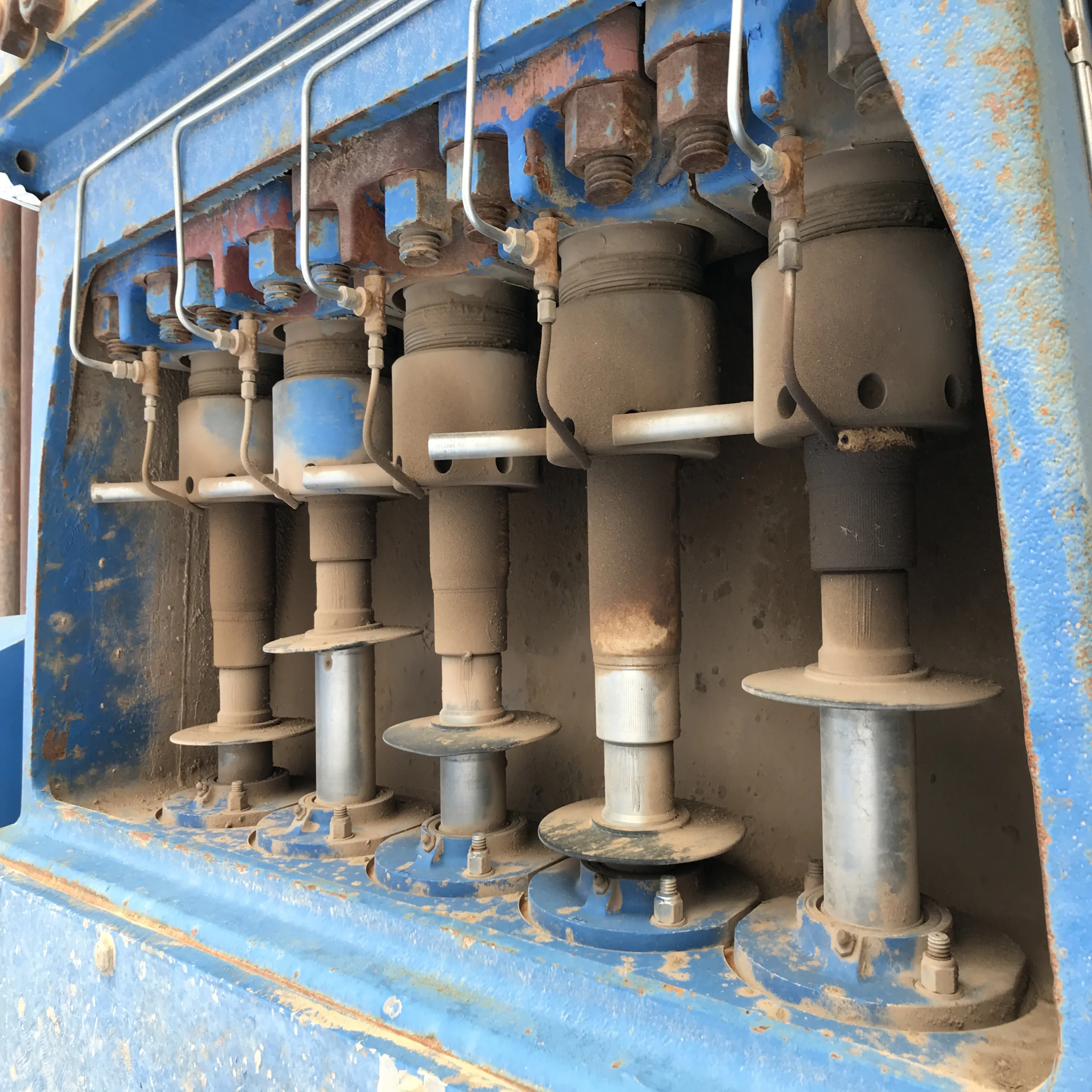

NOV 300Q-5L Quintuplex Pump

This NOV 300Q-5L Quintuplex Pump is in good used condition. This is a high pressure reciprocating pump that is commonly used in oil and gas applications.

This pump has been out of production for about a 2 years, previously pumping salt water. It has been visually inspected and appears to be in good condition. We are selling this one “as-is.”

We have the capability to freight this pump to you (quote upon request), simply reach out to us during business hours. You may also ask us any questions via live chat, email, or even come and look at it before purchasing. Product is located in Enid, Oklahoma.

For more info, view NOV’s Parts List for the 300Q-5 here.

Product Specifications

Pump

• Make: NOV – National Oilwell Varco
• Model: 300Q-5
• Pump Type: Quintuplex
• Fluid End Type: L – Fluid end pressure range is categorized by the manufacturer to be “Low”. NOV also has “M” for medium and “H” for High.
• Fluid End Material: Aluminum Bronze – highly corrosion resistant, abrasion resistant, and easy to machine, this material is suited for pumping corrosive fluids such as saltwater or acidic solutions commonly encountered in the oil field. This corrosion resistance helps prolong the lifespan of the pump and reduces the risk of premature failure due to chemical degradation.

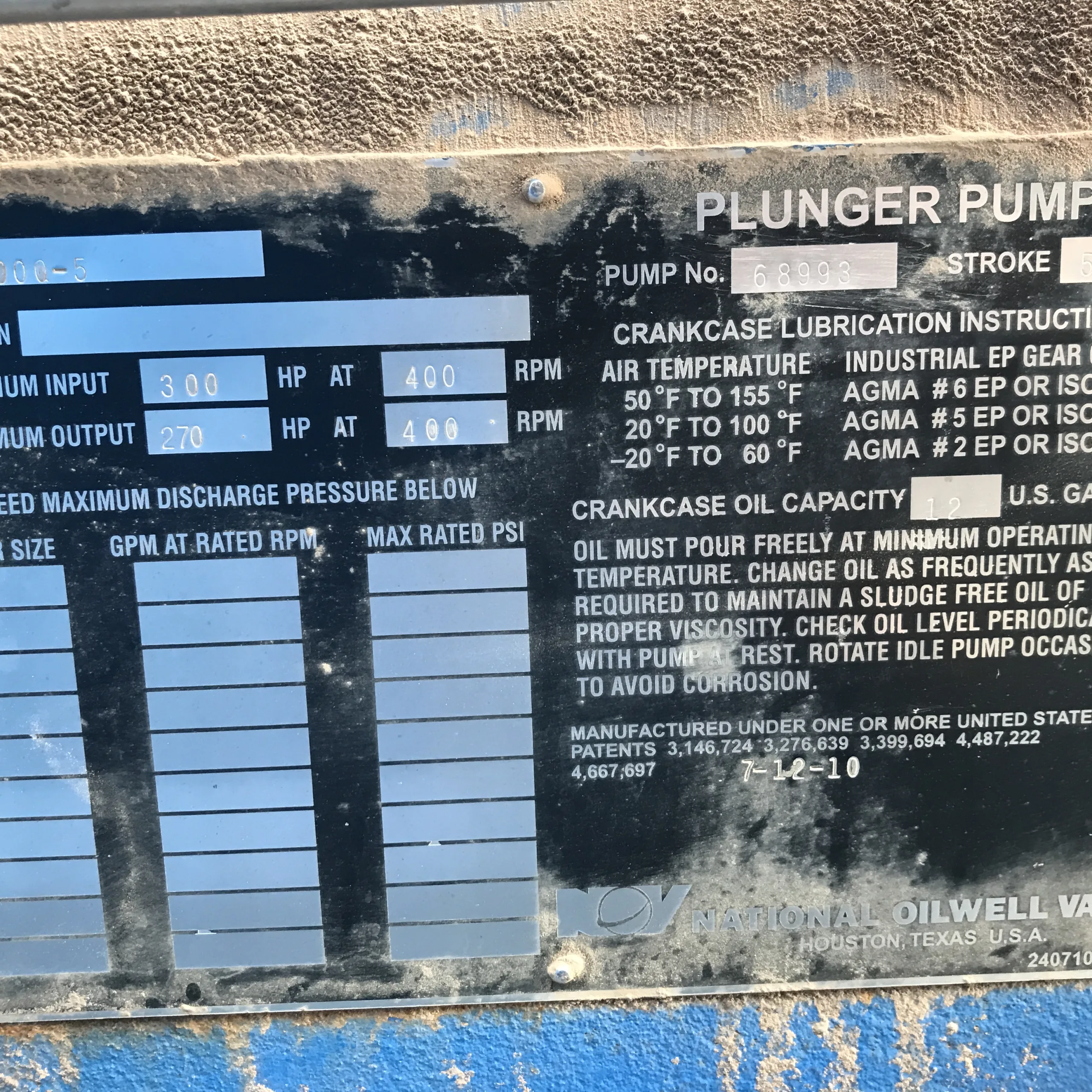

• Manufacture Date: 7/12/2010
• Stroke: 5
• Serial Number: 68993
• Maximum Output: 300 HP at 400 RPM
• Minimum Output: 270 HP at 400 RPM
• Crankcase Oil Capacity: 12 U.S Gallons
  (Crankcase Lubrication Instructions can be found on the exterior tag on pump)
• Attachment: Sled Base – for portability

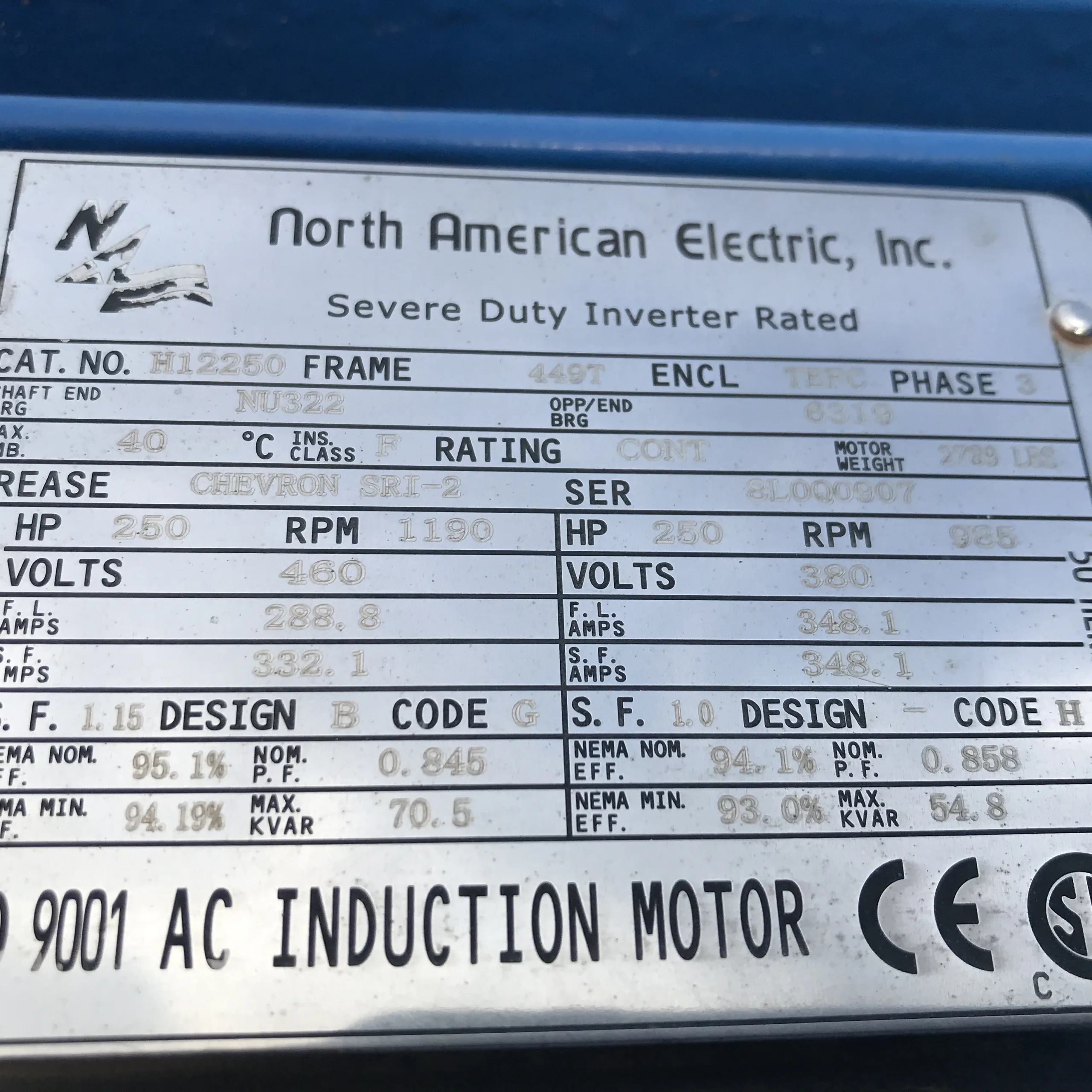

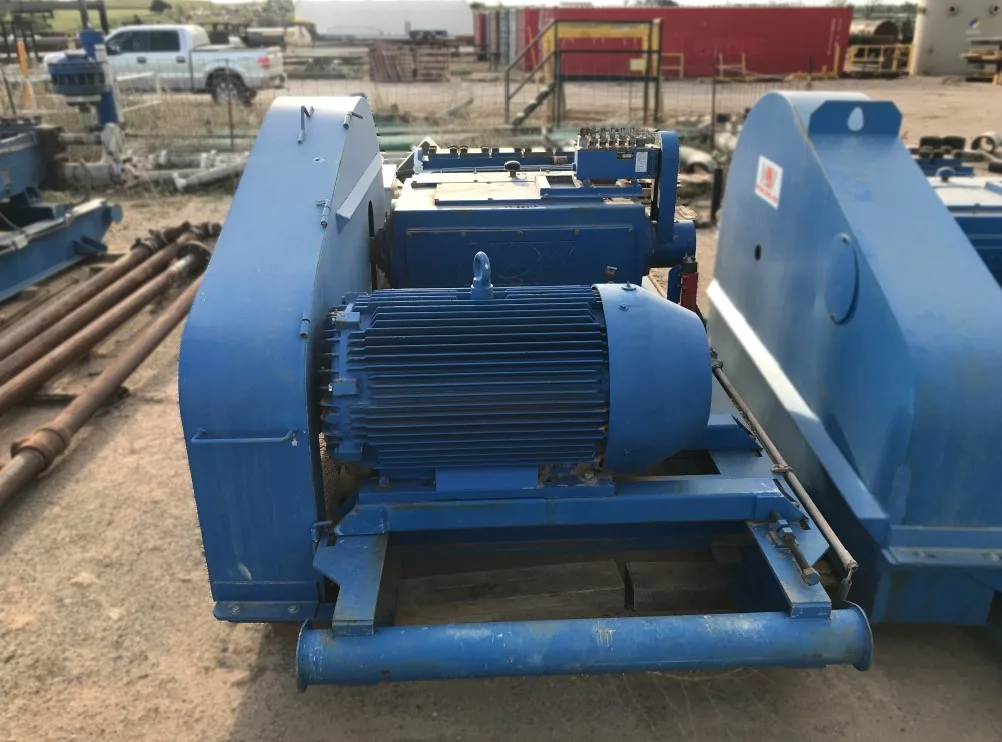

Motor: A.C. Induction

• Make: North American Electric, Inc.
• Rating: Severe Duty Inverter Rated
• Cat. No.: H12250
• Frame: 449T
• Encl: TEFC
• Phase: 3
• Shaft End: NU322
• Opp/End BRG: 6319
• Max Amb: 40C
• Ins. Class: F
• Rating: Cont
• Motor Weight: 2785lbs
• Grease: Chevron SRI-2
• Serial #: 8L0Q0907
• HP: 250 (max)
• RPM: 1190 (max)
• F.L. Amps: 288.8 (max)
• S.F. Amps: 332.1 (max)
• C.F.: 1.15
• Design: B
• Code: G

Why Choose a NOV 300Q-5L Quintuplex Pump?

1. Industry-Leading Performance: With decades of experience and a reputation for excellence, NOV pumps are synonymous with quality and efficiency in the oil and gas sector.
2. Cost-Effective Solution: Investing in a reliable pump like the National Oilwell Varco (NOV) 300Q-5 L fluid end not only ensures a smooth operation, but also minimizes downtime and maintenance costs, ultimately saving you time and money. With today’s market, these used quintuplex pumps are increasingly in demand and even more difficult to locate.
3. Trusted Support: As a part of the NOV family, you can rely on comprehensive customer support and product documentation.
   On this model, you can read more:
   • Here’s a Parts list
   • Here’s an extended Parts List
   • Here’s a Tool Specification PDF

When choosing the best pump for the job, consider the NOV 300Q-5L Quintuplex Pump.

For questions, you can chat with us, or email us during business hours.
