Vertical Separator 36″ x 10′ – New Surplus

Please watch this video.

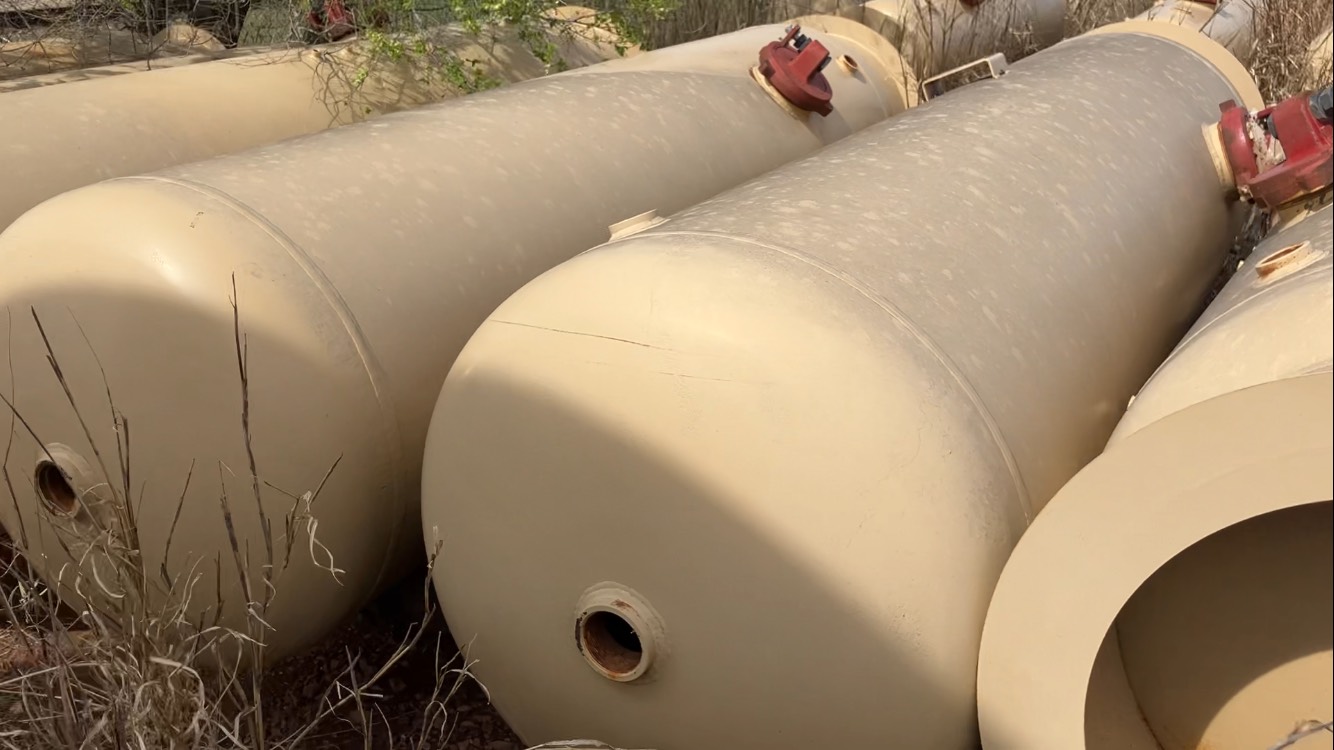

Notice the first 4 vertical separators are bigger than the others? These are our Vertical Separator 36″ x 10′ – New Surplus Vessels up for sale.

Built by Tri-State Supply Corp, this 36″ x 10′ vertical separator is engineered to efficiently separate gas, oil, and water in demanding process systems. Its vertical design offers a space-saving footprint—ideal for tight sites or offshore platforms—while delivering high-capacity performance. As a new surplus unit, it’s a smart, cost-effective choice for operations where ASME certification is not required.

What is a Vertical Separator?

A vertical separator is a type of pressure vessel used in oil & gas and process industries to separate fluid mixtures into their component phases—typically gas, oil, and water. The separation process is gravity-driven, aided by internal baffles and mist eliminators.

How it Works

• Inlet Flow:
  Fluids enter near the top or midsection of the vessel through a side nozzle.
• Primary Separation:
  An internal diverter changes the flow direction sharply, causing heavier liquids to fall and lighter gas to rise.
• Gravity Separation:
  Liquid phases settle at the bottom, where oil and water separate naturally based on density. Internal weirs or baffles may assist.
• Mist Elimination:
  Gas flows upward through mist eliminators (vane packs or mesh pads), removing any residual liquid before exiting the gas outlet.
• Liquid Discharge:
  Oil and water are drained through dedicated outlets, typically regulated by level control systems.

Why Choose this Vertical Separator?

• Space Efficient: Saves valuable horizontal space with its upright design.
• Optimized for High Liquid Content: Performs well with streams that have a high liquid-to-gas ratio.
• Ready to Perform: Each unit is hydrotested, internally and externally cleaned, and fully inspected before delivery.
• Non-Code Value: A budget-friendly option for facilities not requiring ASME-certified vessels.

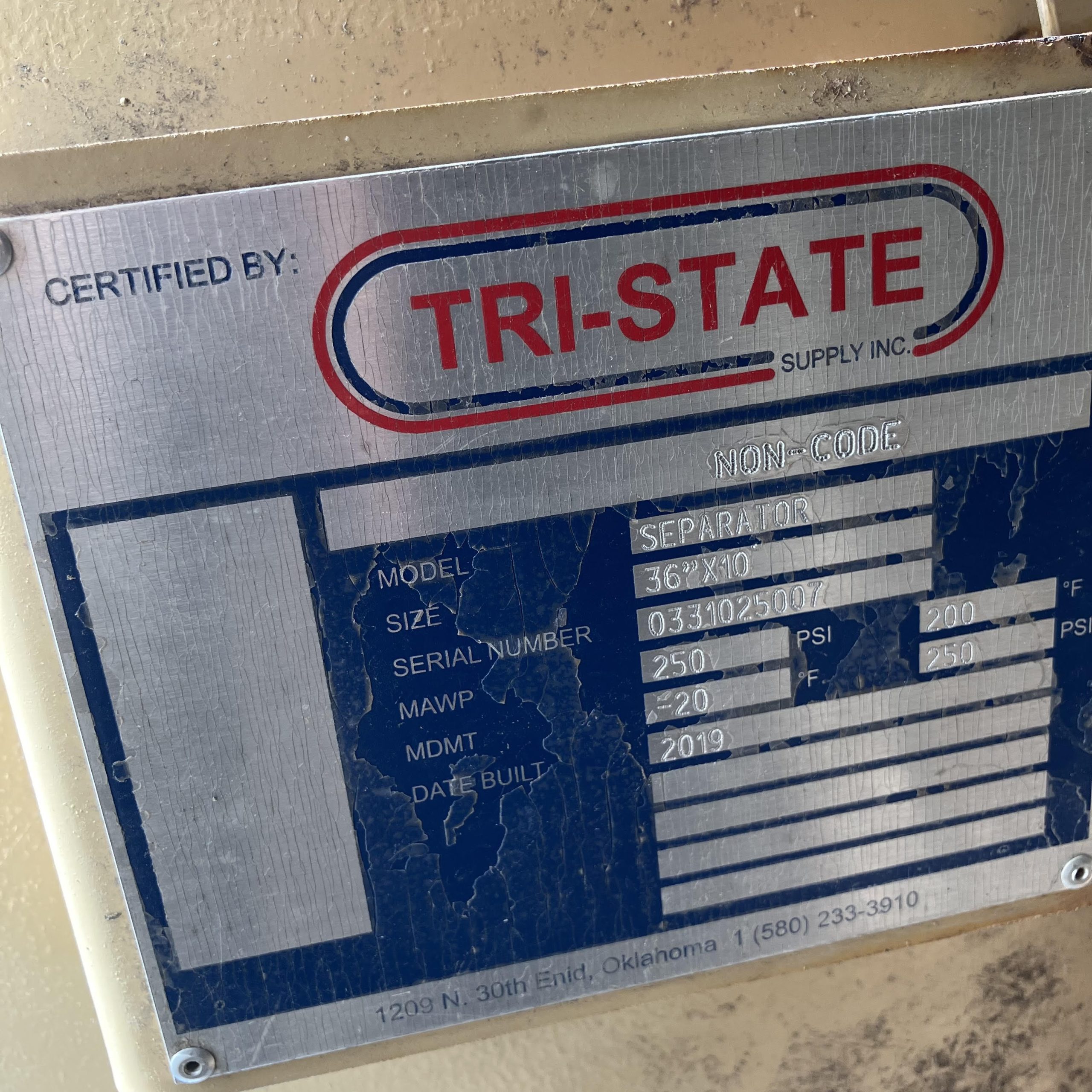

Specifications

• Orientation: Vertical
• Diameter: 36″
• Height: 10′
• MAWP: 250 PSI
• Temperature Range: -20°F to 200°F
• Material: Carbon Steel
• Finish: Painted (Tan/Beige)
• Year of Manufacture: 2019
• Code Status: Non-Code

Pre-Purchase Preparation

Before departing our yard in Enid, OK, each separator undergoes a complete service process:

• External Cleaning with a powerwasher and manual scrubbing if needed for a clean, presentable finish
• Internal Inspection and Cleaning to eliminate residue or buildup
• Hydrotesting to validate pressure integrity and function.
• Fitting Inspection/Replacement as needed (details available upon request)

This ensures every unit is performance-ready from the moment it arrives on-site.

Helpful Links

• Learn more about Tri-State Supply’s fabrication shop and all that we do by visiting our website here.
• Browse other vessels just like this one by clicking this link.

Have questions? Want to see this over video chat? Reach out and we’d be happy to discuss!
