Vertical Separator 36″ x 10′ – New Surplus

Please watch this video.

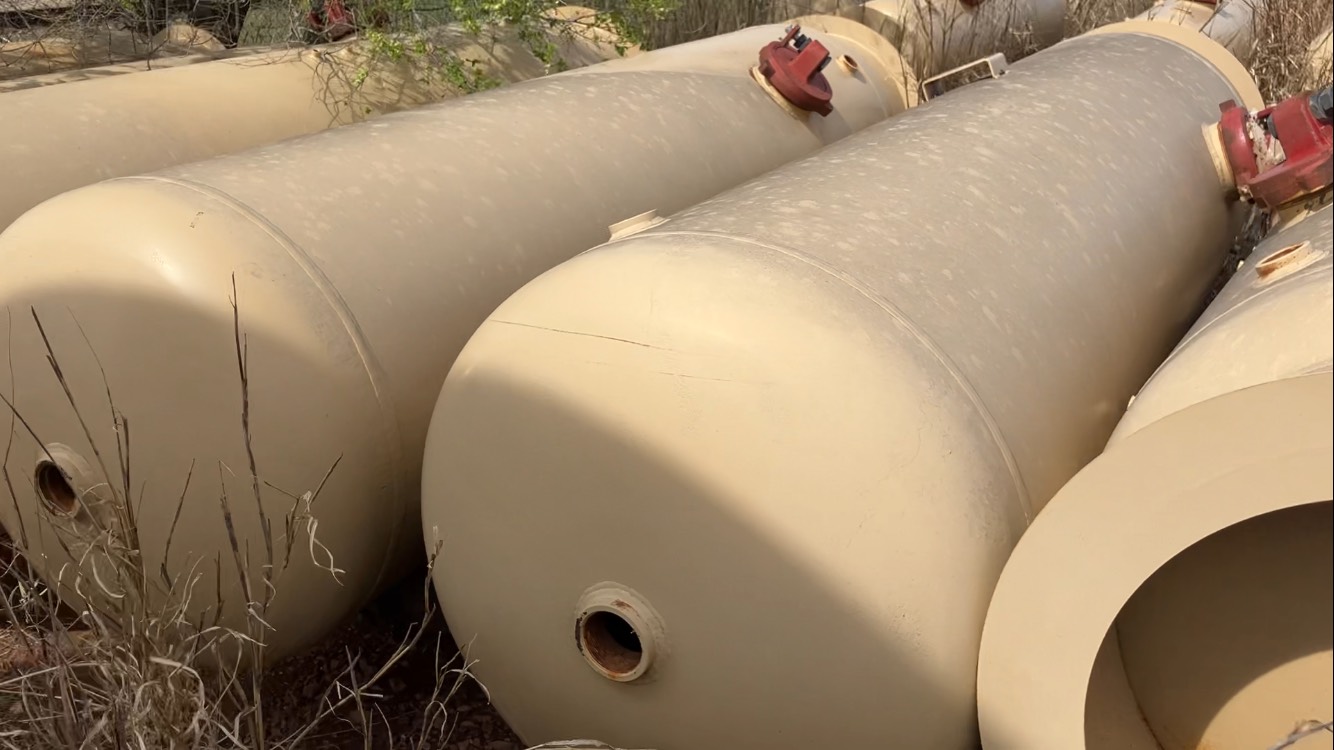

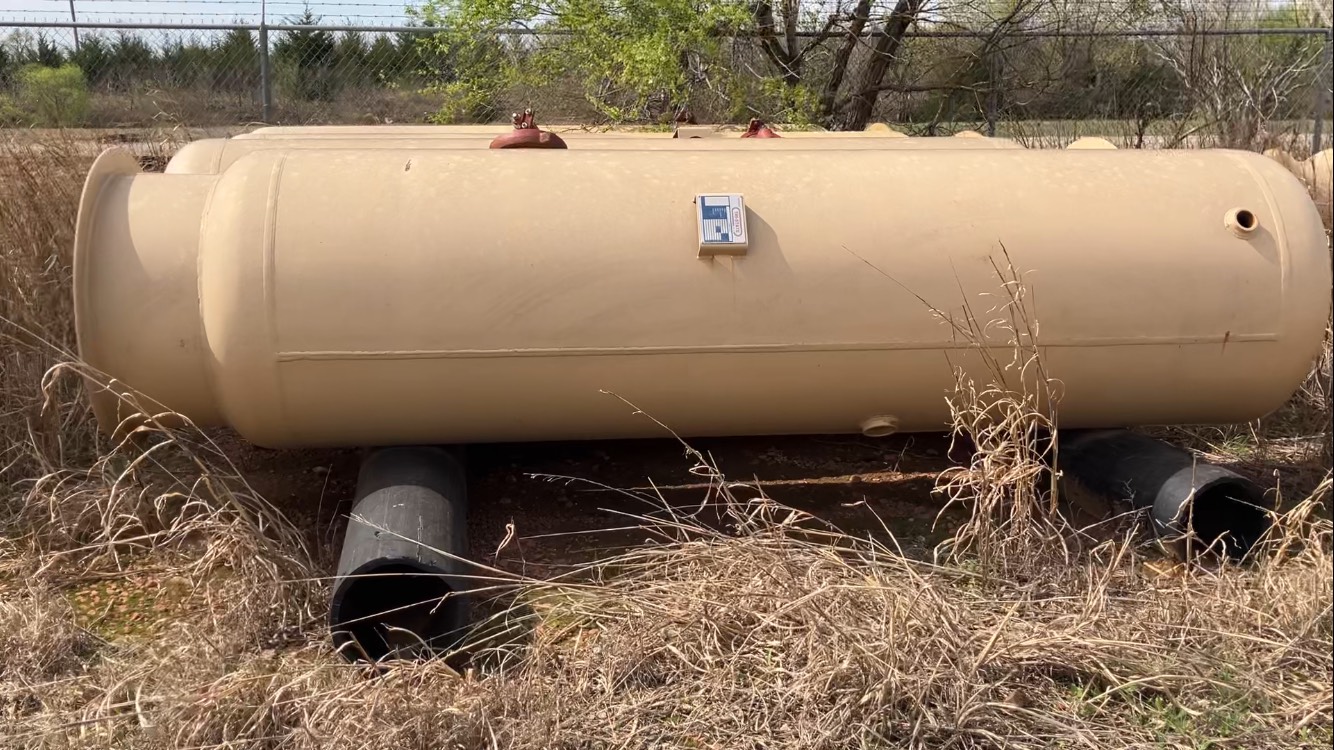

Notice the first 4 vertical separators are bigger than the others? These are our Vertical Separator 36″ x 10′ – New Surplus Vessels up for sale.

Designed and built by Tri-State Supply Corp, this 36″ x 10′ vertical separator is a dependable solution for separating gas, oil, and water in a variety of process systems. Its compact vertical orientation makes it ideal for space-constrained environments such as offshore platforms or tight facility footprints. As a new surplus unit, it’s a great value for operations that do not require ASME certification.

What Is a Vertical Separator 36″ x 10′?

A vertical separator is a pressure vessel used to separate fluid mixtures—typically gas, oil, and water—into individual components. It operates on gravity-based separation, with internal components that direct flow and facilitate efficient phase separation.

How It Works

1. Inlet Flow:
   Fluids enter through a side nozzle near the top or middle of the vessel.

2. Primary Separation:
   The flow hits an internal diverter, forcing a rapid change in direction that drops out heavier liquid droplets.

   • Gas rises to the top

   • Liquids fall to the bottom

3. Gravity Separation:
   As the liquids settle, oil and water separate due to density differences, often aided by weirs or baffles.

4. Mist Elimination:
   Gas passes through mist eliminators (such as vane packs or mesh pads) to remove remaining liquid droplets before exiting the top outlet.

5. Liquid Discharge:
   Oil and water exit separately through designated drain ports, typically controlled by level instrumentation.

Why Choose This Vertical Separator 36″ x 10′?

• Space Efficient – Vertical design saves ground space and simplifies drainage.

• Great for High Liquid Volumes – Ideal when liquid makes up a larger portion of the stream.

• Clean & Ready – Delivered hydrotested, cleaned in and out, and inspected for function and reliability.

• Cost-Effective Non-Code Option – Built for applications where ASME certification is not required.

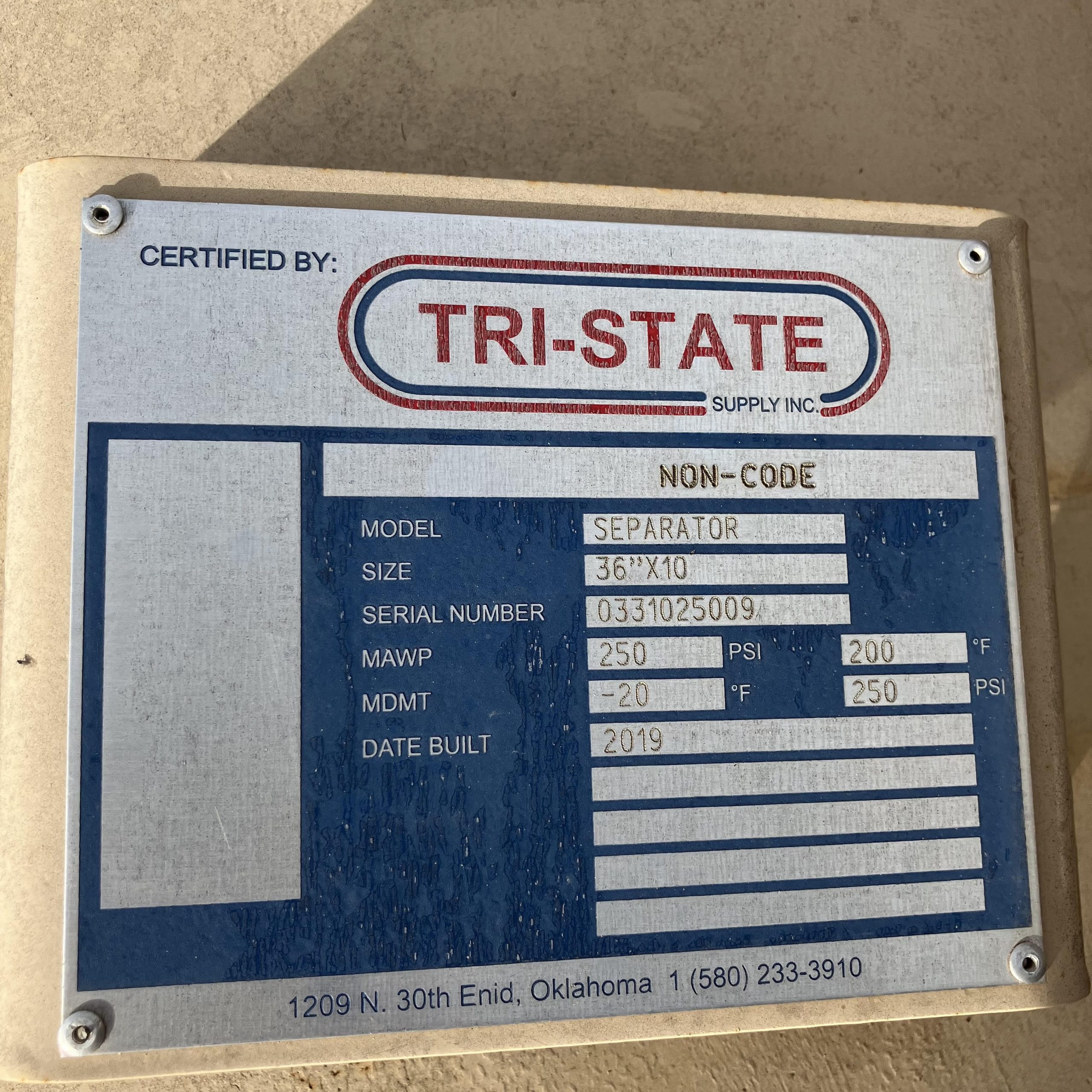

Specifications

• Orientation: Vertical

• Diameter: 36″

• Height: 10′

• MAWP: 250 PSI

• Temp Range: -20°F to 200°F

• Material: Carbon Steel

• Finish: Painted (Tan/Beige)

• Year: 2019

• Code Status: Non-Code

Pre-Delivery Preparation for this Vertical Separator 30″ x 10′

Every separator is fully serviced before it leaves our yard:

• External Cleaning for a professional finish

• Internal Cleaning to remove residues

• Hydrotested to confirm pressure integrity

• Fittings Inspected or Replaced, with details available on request

We ensure each unit is performance-ready, so you can put it to work the day it arrives.

Helpful Links

• Learn more about Tri-State Supply’s fabrication shop and all that we do by visiting our website here.
• Browse other vessels just like this one by clicking this link.

Have questions? Want to see this over video chat? Reach out and we’d be happy to discuss!
