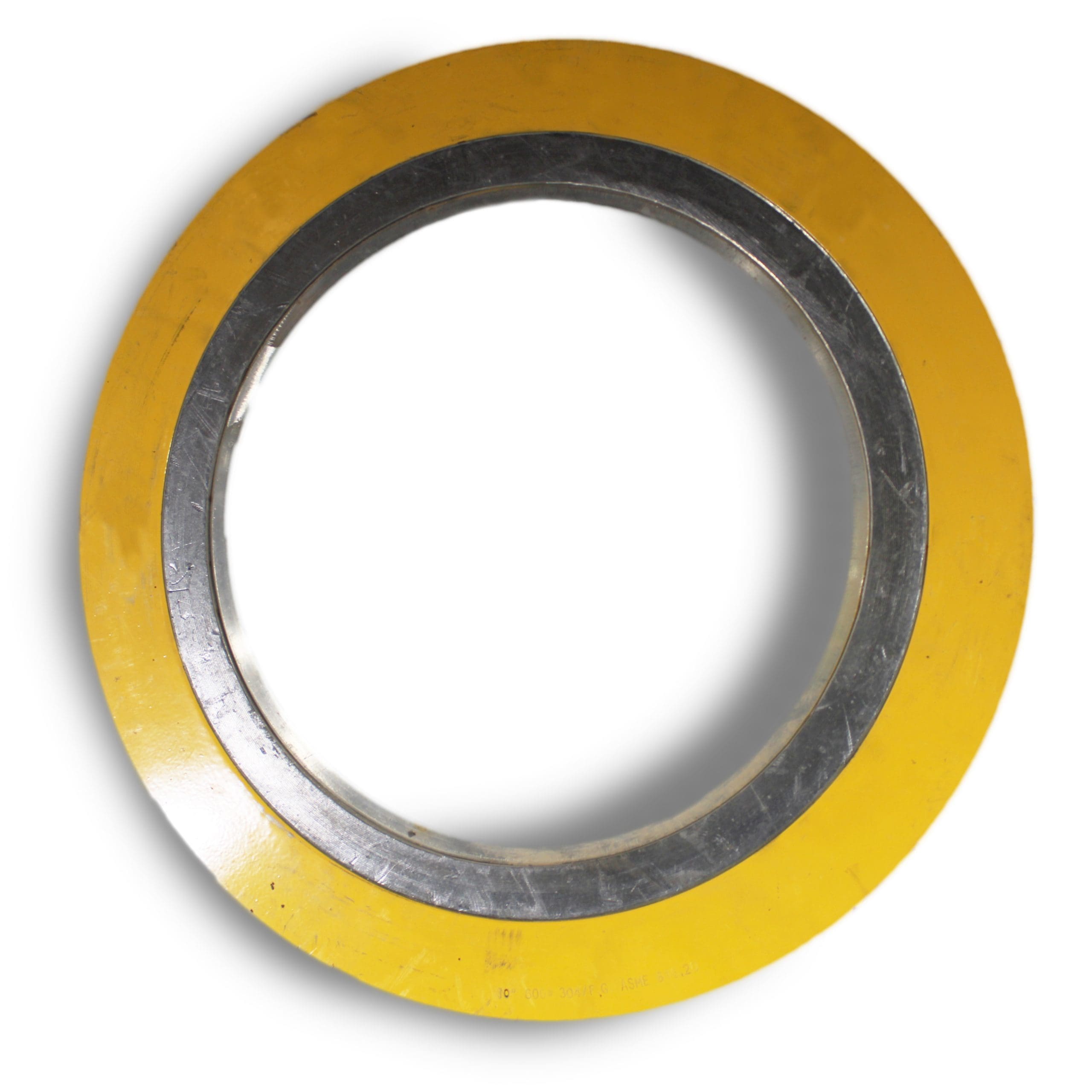

Introducing the 10″ Spiral Wound Gasket 600 ASME B16.20 304/FG 304 IR, a crucial component for ensuring leak-proof sealing in high-pressure and high-temperature applications. This gasket is designed to meet the rigorous standards of ASME B16.20, making it an ideal choice for professionals in industries such as oil & gas, chemical processing, and manufacturing. Whether you’re dealing with steam, oil, or other industrial fluids, this gasket provides the reliability and performance you need to maintain operational efficiency and safety.
Key Features
– ASME B16.20 Compliance: This gasket adheres to the ASME B16.20 standard, ensuring compatibility and reliability in high-pressure environments. This is essential for procurement officers and engineers who require components that meet industry standards.
– 304 Stainless Steel Construction: Made from 304 stainless steel, this gasket offers excellent corrosion resistance, making it suitable for harsh industrial environments. This benefits maintenance teams by reducing the frequency of replacements and downtime.
– Flexible Graphite Filler (FG): The flexible graphite filler provides superior sealing performance, accommodating thermal cycling and pressure fluctuations. This feature is particularly beneficial for operators in the oil & gas and chemical industries where temperature and pressure variations are common.
– Inside Ring (IR) Included: The inclusion of an inside ring enhances the gasket’s structural integrity and prevents over-compression, ensuring a longer service life. This is advantageous for businesses looking to maximize the lifespan of their equipment.
Common Applications
– Oil & Gas Industry: Used in pipelines and refineries, this gasket ensures secure sealing of flanges, preventing leaks of hazardous materials. Engineers and maintenance teams rely on its durability and performance.
– Chemical Processing: Ideal for sealing connections in chemical plants, where resistance to aggressive chemicals and high temperatures is crucial. Plant managers and safety officers benefit from its reliable sealing capabilities.
– Manufacturing: Utilized in various manufacturing processes that involve high-pressure steam or fluids, ensuring operational efficiency and safety. Maintenance personnel appreciate its ease of installation and long-lasting performance.
In conclusion, the 10″ Spiral Wound Gasket 600 ASME B16.20 304/FG 304 IR is an indispensable tool for professionals seeking dependable sealing solutions in demanding environments. Its robust construction and compliance with industry standards make it a valuable addition to any industrial operation. Don’t miss out – get yours today!
