KIMRAY ECP 2200 SMT PO WITH KIMRAY AHJ 30 HPG-D

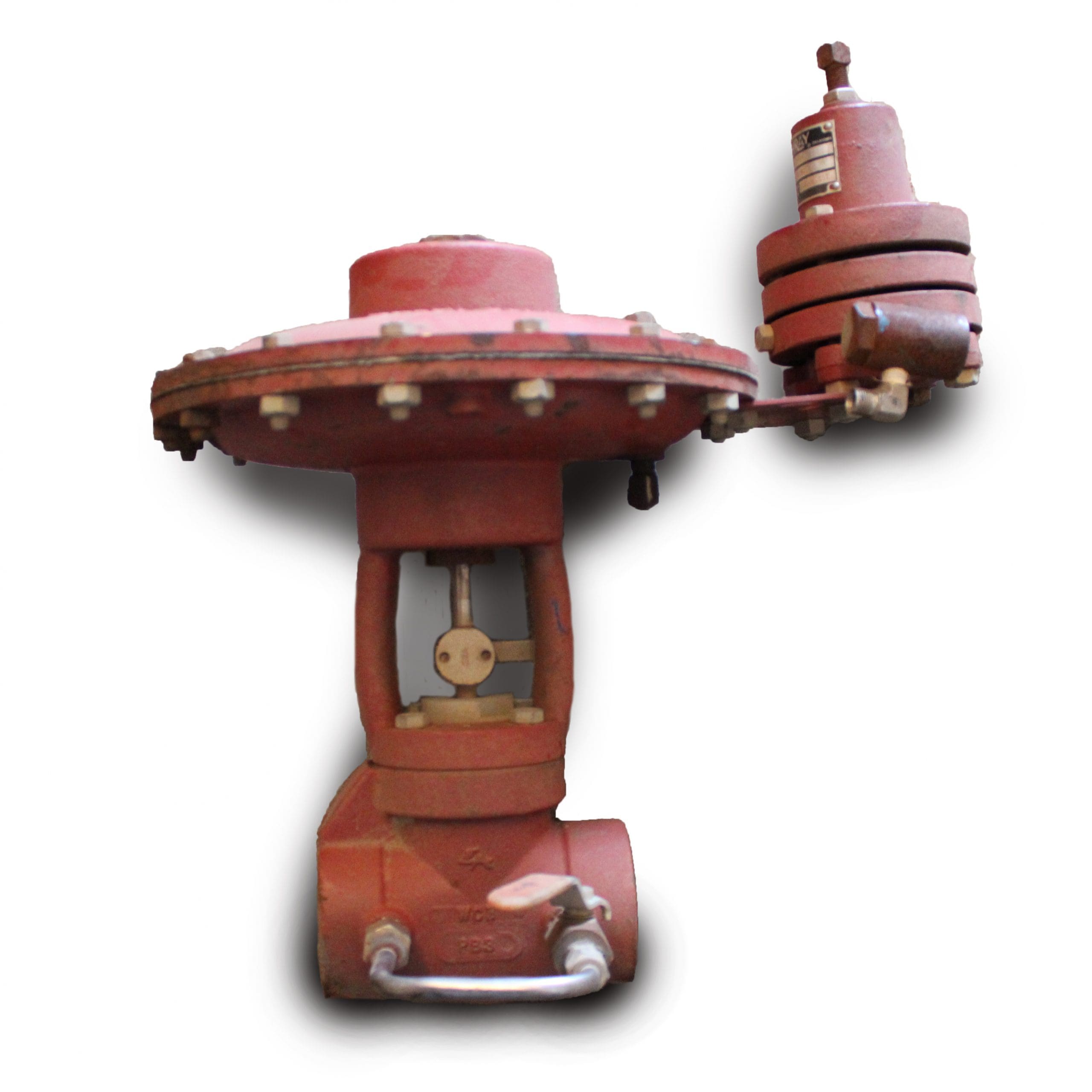

Here we have a pre-owned Kimray combo package. This bundle includes the Kimray ECP 2200 SMT PO Stem-Guided High Pressure Control Valve and the Kimray AHJ 30 HPG-D High Pressure Pilot. Both components are in good used condition, offering reliable performance for various applications at a fair price.

Kimray ECP 2200 SMT PO: Stem-Guided High Pressure Control Valve

The Kimray ECP 2200 SMT PO is a versatile, non-balanced control valve designed for a range of applications, including dump valves, pressure regulators, suction controllers, and recirculation valves. It’s suitable for use in plunger lift or flowback operations. This valve is ideal for those requiring a smaller trim size and valve coefficient (Cv), offering precision in control and regulation.

Technical Specifications (copied from Kimray.com):

• Connection Size: 2 inches
• Connection Type: Female NPT
• Body Style: Through Body
• Body Material: Steel
• NACE MR0175: Option Available
• Trim Size: 1 inch
• Trim Type: Linear (Nominal)
• Leakage Class: Class IV
• Process Fluid: Liquid and Gas
• Max Working Pressure: 2000 psig
• Actuator Spring Nominal Pressure: 20 psig
• Max Supply Gas Pressure: 45 psig
• Fail Position: Closed – Field Reversible
• Operation: Pneumatic
• Face-to-Face Length: 6.593 inches
• Min Cv: 7
• Max Cv: 21
• Cf: 0.77

Kimray AHJ 30 HPG-D: High Pressure Pilot

The Kimray AHJ 30 HPG-D High Pressure Pilot is essential for sending signals to actuate control valves. It operates at pressures ranging from 5 psig to 300 psig, making it suitable for various high-pressure applications. This pilot is known for its reliability and precise control.

Technical Specifications (copied from Kimray.com):

• Connection Size: 0.25 inches
• Connection Type: Female NPT
• Body Material: Cast Ductile
• NACE MR0175: Option Available
• Pilot Type: Vent
• Pilot Output: Indirect
• Max Working Pressure: 300 psig
• Min Set Point Pressure: 5 psig
• Max Set Point Pressure: 300 psig
• Operation: Pneumatic

Condition:

Both components are used but in good condition, with some minor signs of wear typical for used equipment. The ECP 2200 SMT PO has been kept indoors after use, and the AHJ 30 HPG-D remains highly functional. After use, these have been stored indoors.

Applications:

• Control and Regulation: Ideal for precise control in high-pressure environments, including oil and gas, chemical processing, and other industrial applications.
• Pressure Management: Suitable for managing and regulating pressures in various systems, ensuring reliable operation and compliance with zero-emission requirements when used with electric actuation.

Conclusion

This Kimray combo offers a reliable and cost-effective solution for your high-pressure control needs. The ECP 2200 SMT PO and AHJ 30 HPG-D provide exceptional performance and durability, making them valuable additions to any control system. The price reflects their current condition, and these still have a lot of life left in them. If you would like to look before purchasing over video chat, or to come by, please reach out and we’d be happy to assist.
