$7,033.33
New 30″ x 10′ vertical separator by Tri-State Supply. Non-code, 250 PSI rated, built 2019. All vessels for sale will be inspected, fittings replaced if needed, and cleaned thoroughly and pressure tested before they leave our property. Read more below.
|
||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
On orders < 150lbs
on orders > 150lbs
1 in stock
Seller Info
Contact seller for Bulk Purchasing

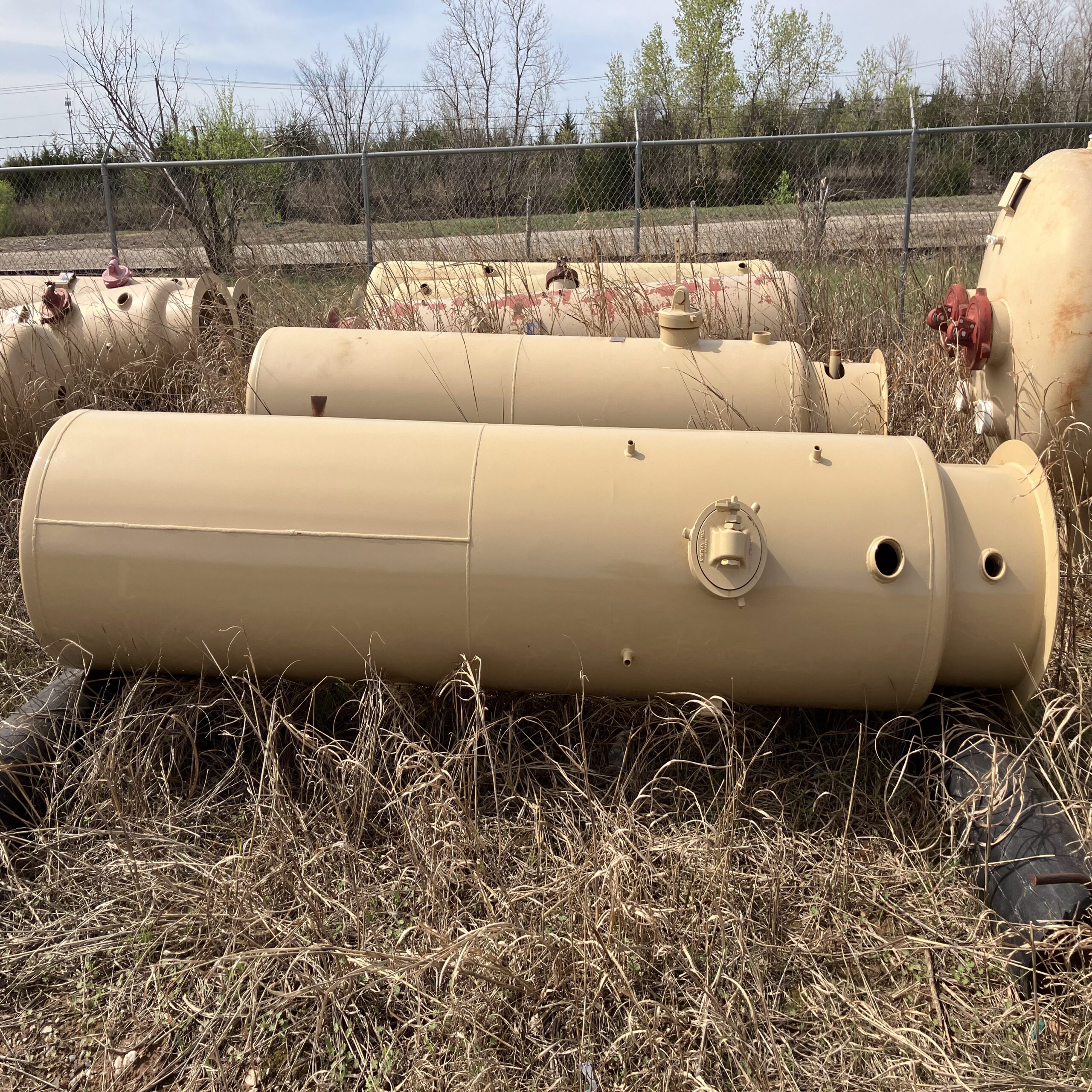

This 30″ x 10′ vertical separator is a field-tested, non-code pressure vessel used primarily in upstream oil and gas production to separate the components of wellstream fluids—gas, oil, water, and solids. Installed close to the wellhead, this unit plays a critical role in early-stage processing by isolating gas from liquids and removing free water and particulates from production flow.
Designed with a 250 PSI pressure rating at a 200°F temperature, this separator remains a capable workhorse for lower- to mid-pressure applications. Though the exterior paint is in poor condition, the vessel itself remains structurally sound and functional for operations where code compliance is not required.

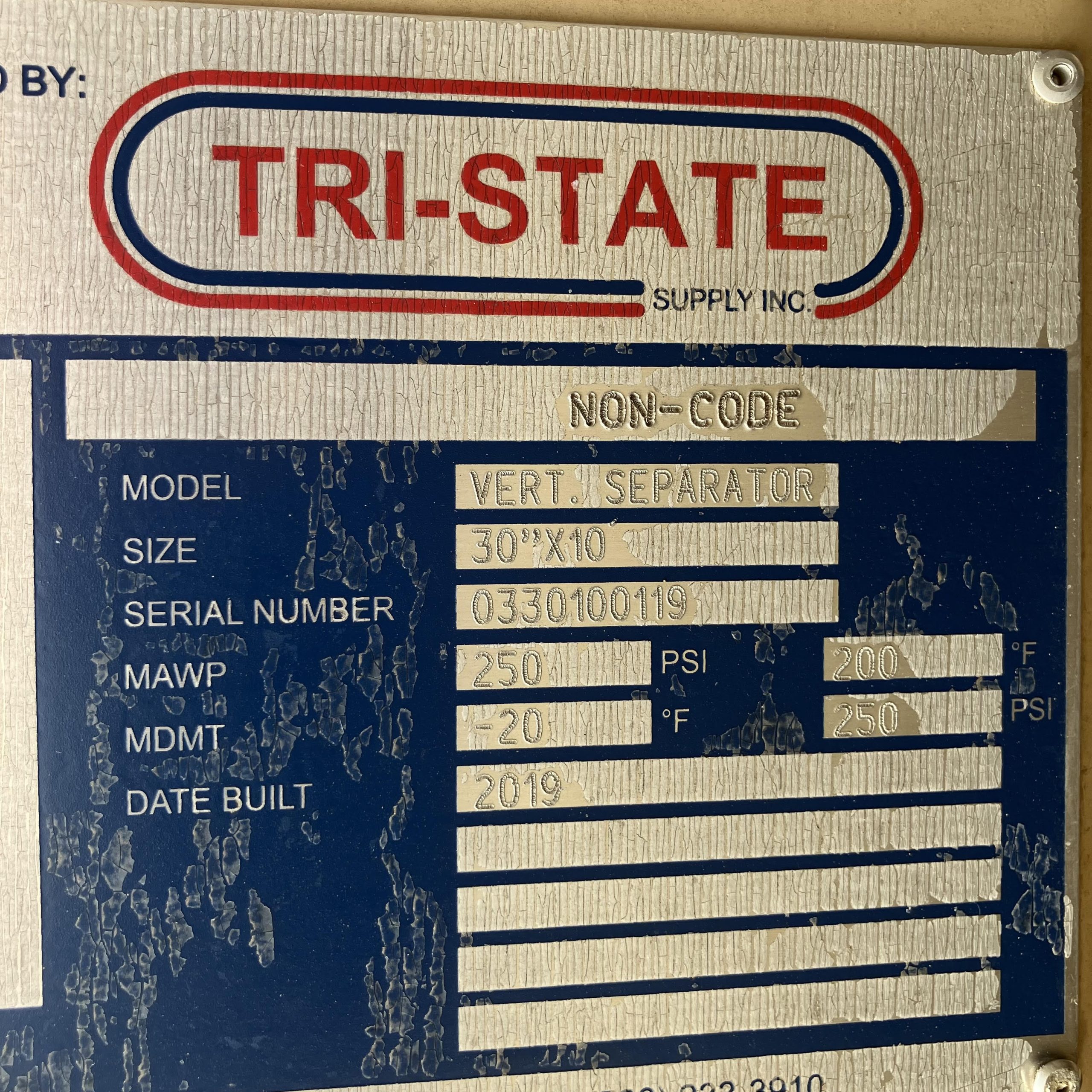

Orientation: Vertical
Diameter: 30 inches
Length: 10 feet
Pressure Rating: 250 PSI
Temperature Rating: 200°F
Minimum Design Metal Temperature (MDMT): -20°F
Material: Carbon steel
Coating: Painted
Build Date: 2019
Code Status: Non-code (not ASME certified)
Condition: New
Vertical separators use gravity and internal baffling to efficiently separate gas from liquid phases in raw production fluids. Gas exits through the top, while oil, water, and solids settle into different levels at the bottom. Vertical separators are essential for preparing extracted fluids for safe and efficient transport through pipelines or other transportation systems.
This used 30″ x 10′ vertical separator is a practical option for non-code, lower-budget projects or temporary installations where full ASME compliance is not required. Despite cosmetic wear, it still provides reliable separation capabilities for a range of upstream oilfield applications.
Shipping Countries: United States (US)
Ready to ship in 1-3 business days
Shipping Policy
At Tri-State Supply, we strive for efficiency. We will ship your order in 1-3 business days upon receiving your order. For items shipped via large freight, it may take a few days longer for your purchased product(s) to arrive. You may contact us with any questions regarding your specific order.
Please allow us 24 hours to respond to any questions you may have submitted from our business profile page. Our business hours are from 8:00a.m. - 5:00p.m. CST Monday through Friday.
Refund Policy
We offer a 30 day money back guarantee for new items that are returned in a condition at which we can sell again.
We try and make the process simple. You can request a refund on your order, and we will send you a return shipping label via email. Once we get the item, we will process your refund.
Used items are non-refundable.
For larger freight items, we will reach you via email and/or phone to handle disputes or returns.
|
||||||||||||||||||||||
