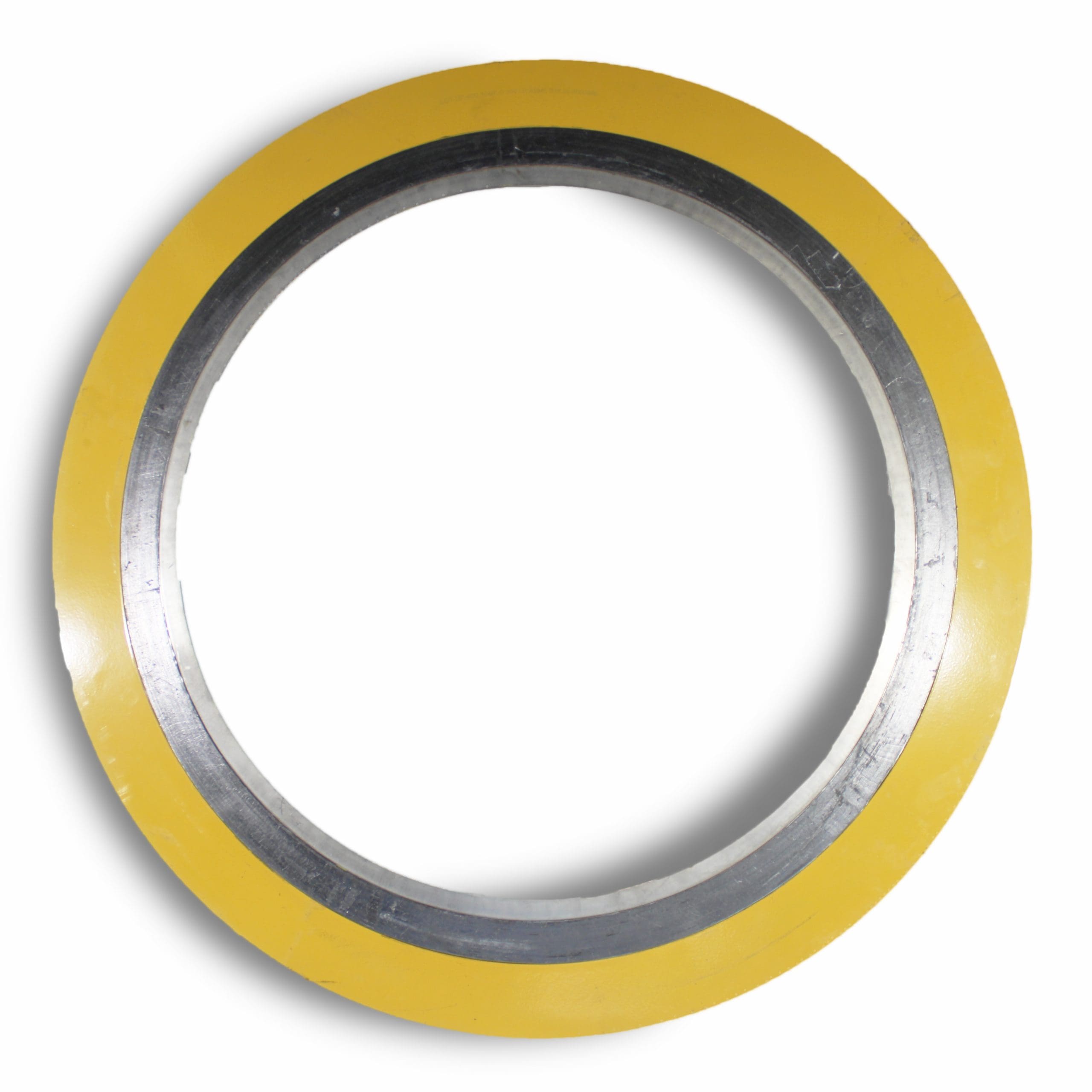

The 20″ SPIRAL WOUND GASKET 600 ASME B16.20 304/FG 304IR is designed for high-pressure applications, accommodating 20-inch NPS pipes with up to 600 pounds per square inch working pressure. This gasket features a robust spiral wound construction, combining metal and filler materials for enhanced sealing performance. It is painted yellow for easy identification and durability in harsh environments.
Key Features
- High-Pressure Compatibility: Engineered to withstand up to 600 PSI, making it suitable for demanding industrial applications where reliability is crucial.
- ASME B16.20 Standard: Conforms to ASME B16.20 standards, ensuring compatibility with various pipe flanges and compliance with industry specifications.
- Durable Spiral Wound Construction: The spiral wound design incorporates layers of stainless steel and filler material, providing a resilient seal that maintains integrity under pressure and temperature fluctuations.
- 304 Stainless Steel Inside Ring: Features an inside ring made of 304 stainless steel, enhancing the gasket’s resistance to corrosion and contributing to its overall strength and durability.
- Yellow Paint Coating: The gasket is painted yellow for visibility and ease of identification, which helps prevent mix-ups and ensures proper installation.
Common Applications for the 20″ Spiral Wound Gasket 600 ASME B16.20
- High-Pressure Pipe Systems: Ideal for use in pipe systems handling high-pressure fluids or gases, where a reliable seal is essential to prevent leaks and maintain system integrity.
- Industrial Equipment: Suitable for sealing joints and flanges in industrial machinery and equipment, ensuring a secure and leak-proof connection.
- Chemical Processing: Effective in environments where chemicals or corrosive substances are present, thanks to the gasket’s corrosion-resistant properties.
- Oil and Gas Industry: Perfect for applications in the oil and gas sector where high pressure and severe operating conditions demand a dependable sealing solution.
Conclusion
The 20″ SPIRAL WOUND GASKET 600 ASME B16.20 304/FG 304IR provides a durable, high-performance sealing solution for demanding applications. With its compliance to ASME standards, high-pressure capabilities, and corrosion-resistant materials, this gasket is a reliable choice for various industrial needs. The yellow paint adds visibility, ensuring easy identification and installation. Enhance the efficiency and safety of your systems with this top-quality spiral wound gasket.
