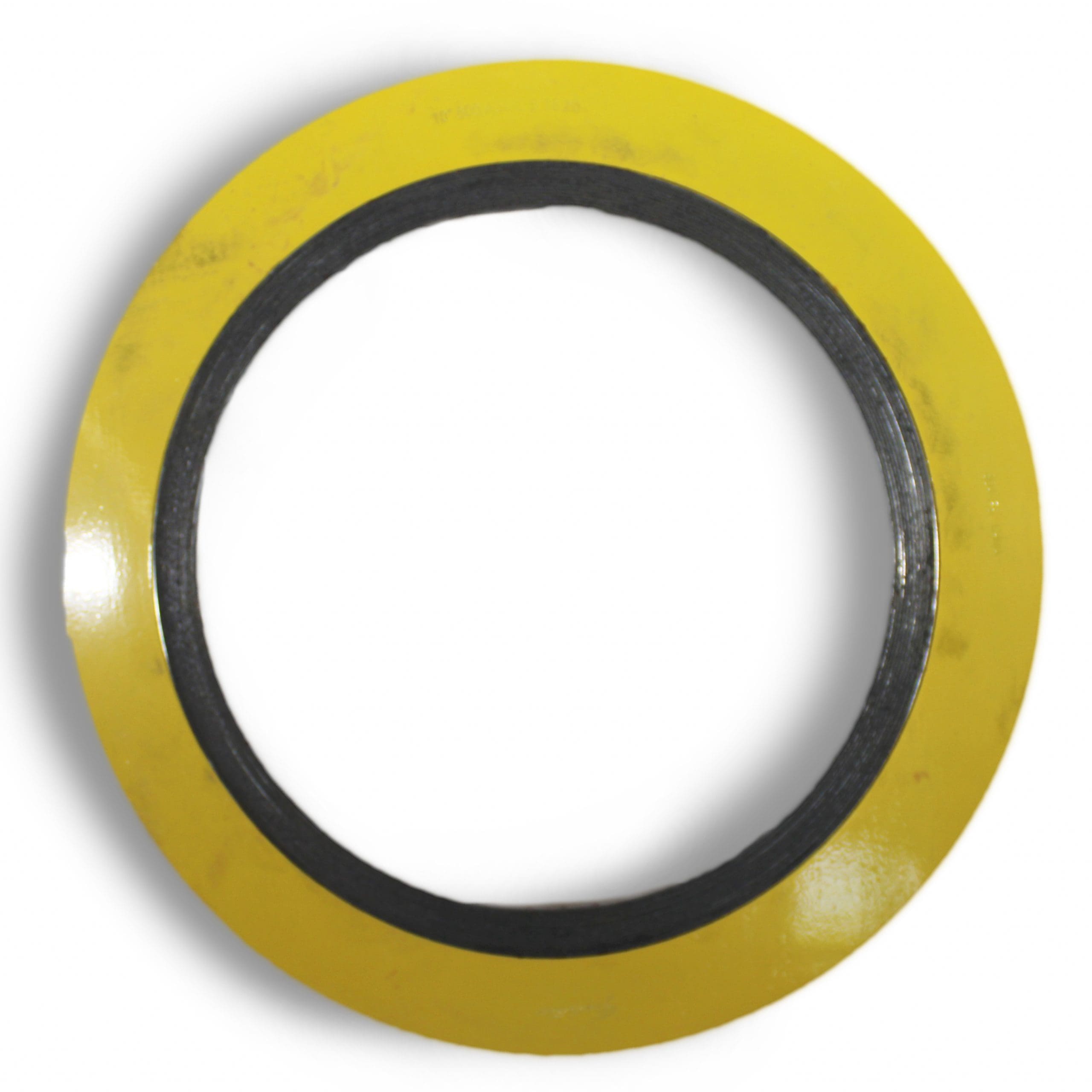

Optimize the integrity and performance of your flanged connections with this 10″ Spiral Wound Gasket 600 304/FS ASME B16.20. This high-quality, new gasket is designed to provide an optimal sealing solution for high-pressure applications. Featuring a spiral wound construction, it has a durable 304 stainless steel and filler material. It meets the ASME B16.20 standard, ultimately giving you the compliance needed for your installations.
What Is the 10″ Spiral Wound Gasket 600 304/FS ASME B16.20?
This gasket is engineered for creating effective seals between flanges in various industrial applications. Here’s an overview of its key characteristics:
Key Features:
- 10-Inch Diameter: Suitable for large flanged connections, providing a substantial sealing surface.
- 600 lb. Pressure Rating: Designed to handle high-pressure applications, maintaining a secure seal under demanding conditions.
- Spiral Wound Design: Offers a flexible and effective sealing solution, accommodating flange surface irregularities and ensuring a leak-proof connection.
- 304 Stainless Steel Inner Ring Construction: Provides excellent strength, durability, and resistance to corrosion.
- ASME B16.20 Compliance: Meets industry standards for flange gaskets, ensuring reliability and performance.
- Yellow Paint: Enhances visibility and identification of the gasket in your inventory or during installation.
Common Applications:
- Industrial Pipelines: Ideal for use in high-pressure pipeline systems where a reliable seal is crucial to prevent leaks and maintain system integrity.
- Oil and Gas Industry: Suitable for equipment and flanged connections in the oil and gas sector, where durability and resistance to harsh conditions are required.
- Manufacturing and Processing: Useful in various manufacturing processes and processing systems that require robust and effective sealing solutions.
Conclusion
The 10″ Spiral Wound Gasket 600 304/FS ASME B16.20 is a premium choice for ensuring secure and efficient sealing in high-pressure applications. With its stainless steel spiral winding and compliance with ASME B16.20 standards, it is designed for dependable performance and durability. Once more, its yellow paint not only provides easy identification but also indicates its new condition, ready to enhance your piping system’s reliability.
Helpful Links
Browse other gaskets and sealing solutions on Branabee here.
Learn more about Tri-State Supply and our full-service fabrication shop by visiting our website.
Be sure to follow Branabee on social media for the latest updates and product offerings.
