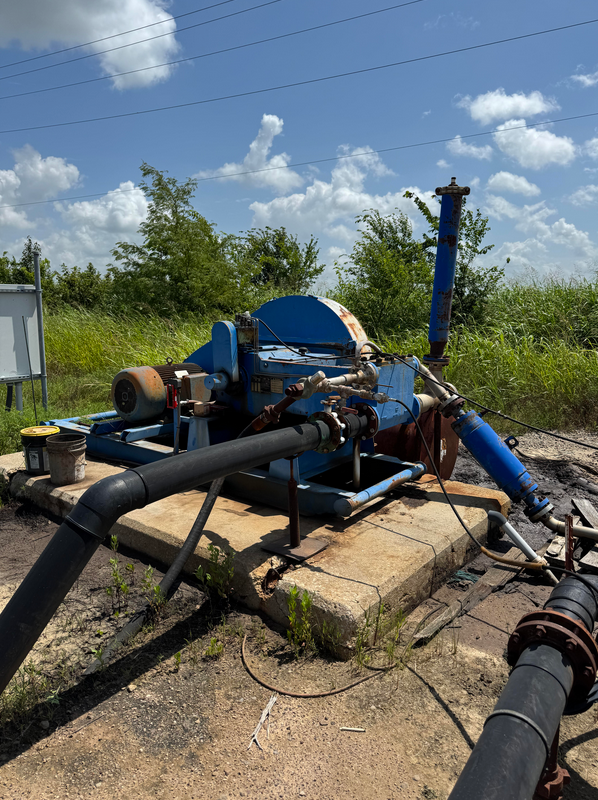

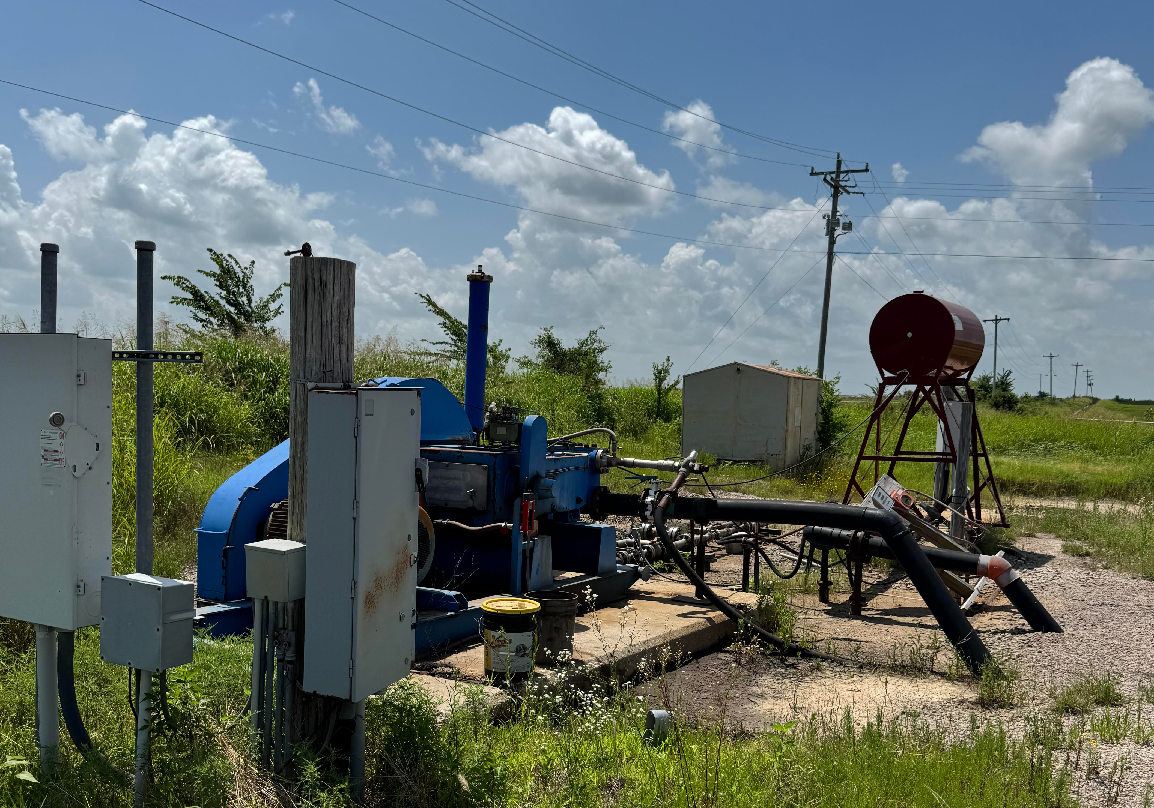

The NOV 165-T-5L Triplex Reciprocating Plunger Pump is engineered for continuous, high-performance operation across a wide pressure range. Built by National Oilwell Varco, a global leader in oilfield equipment, this pump combines field-proven durability with minimal maintenance needs—making it a dependable choice for demanding applications.
Featuring a low-pressure (“L“) fluid end and robust construction, the 165-T-5L is ideal for operations requiring uninterrupted uptime and consistent flow performance. Its skidded mount design allows for easy transport and integration into existing systems, while the powerful drive system ensures high efficiency and throughput.
NOV 165-T-5L Triplex Reciprocating Plunger Pump – Product Specifications
For Installation, Maintenance, and Operation, view the Manufacturer’s Guide here.
For a complete parts list from the manufacturer, click here.
For Performance Data, and Specs from the manufacturer, click here.

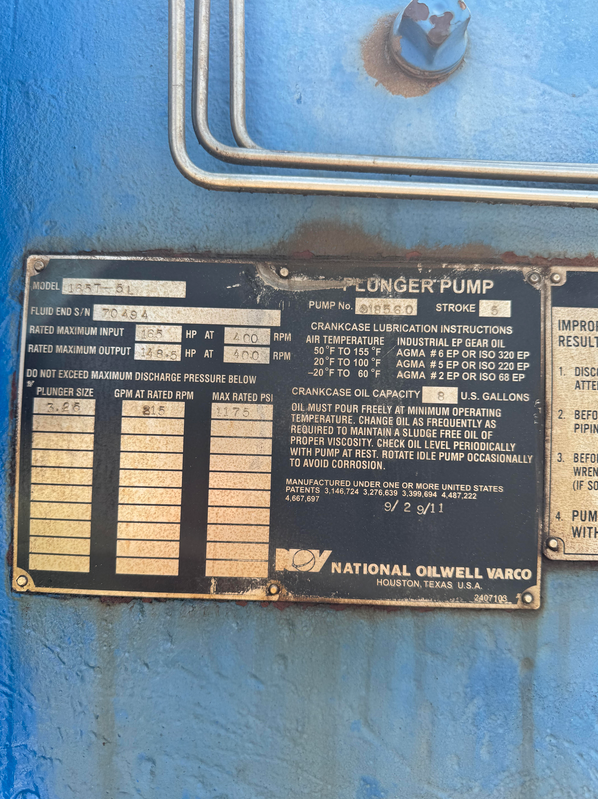

- Model: 165 T-5L
- Pump Number: 67155
- Maximum Input HP: 165 at 400 RPM
- Maximum Output HP: 148.5 at 400 RPM
- Plunger Size (in): 3.25
- GPM (Gallons Per Minute) at Rated RPM: 815
- Date Bulit: 9/29/2011
- Max Rated PSI: 1175
- Type: Triplex
- Stroke Length (in.): 5
- Fluid End: L Fluid End (Low) – Aluminum Bronze (S/N: 70494)
- Mount: Skidded
- Pump Size (in): 102 x 127
- Rating: bhp at 500 rpm(kw) 165 (123)
- Rated Plunger Load (lbs): 9800
- Maximum Discharge Pressure: 3120 PSI
- Weight (lbs): 10,000lbs
- Discharge PSI Range: 780/5000
- BPD Range: 394/11191
- Oil Capacity (Gallons): 8 – See manual above

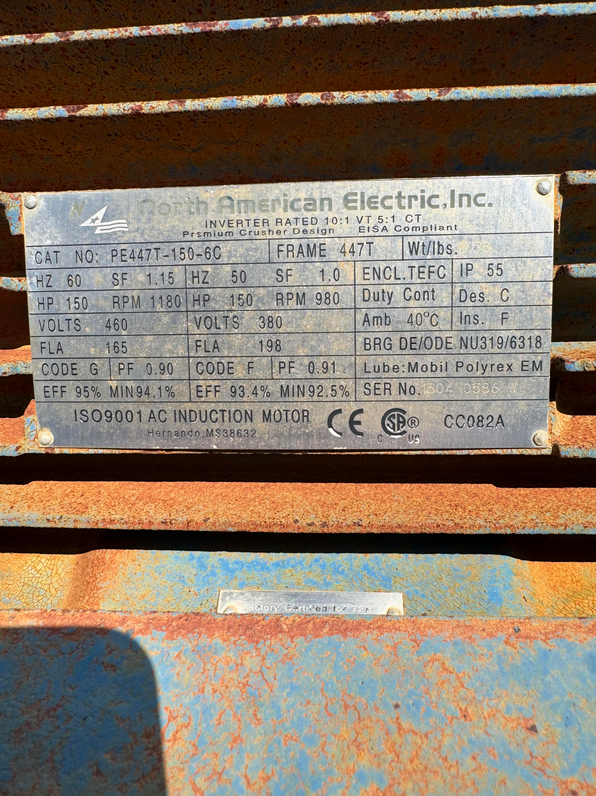

Motor – ISO9001 AC INDUCTION MOTOR
INVERTER RATED 10:1
VT 5:1 CT
Premium Crusher Design
EISA Compliant
- Make: North American Electric
- Hernando, MS33632
- CAT No: PE447T-150-6C
- Frame: 447T
- Weight (lbs.): 1758
- ENCL. TEFC
- IP 55
- AMB 40°C
- INS. F
- BRG DE/ODE NU319/6318
- Lube: Mobil Polyrex EM
- Serial Number: 1304 0586 W
AT 1180 RPM:
- HZ (Hertz): 60
- SF: 1.15
- HP: 150
- RPM: 1180
- Volts: 460
- FLA: 165
- Code: G
- PF: 0.90
- Eff: 95% Min: 94.1%
AT 980 RPM
- HZ (Hertz): 50
- SF: 1.0
- HP: 150
- RPM: 980
- Volts: 380
- FLA: 198
- Code: F
- PF: 0.91
- Eff: 93.4% Min: 92.5%
Features and Benefits– from nov.com
- PSTL, CBRZ, DSS, and CDI fluid end offerings
- Hard-Co, tungsten, and ceramic plungers
- Multiple packing designs and materials
- Spherical valve, as well as other valve design offerings
- Packing lubrication
- Packing leak detection options
- Digitalization packages
- Suction booster
- Complete pump packages
Common Applications for the NOV 165-T-5M Triplex Reciprocating Plunger Pump
- Waterflood
- Salt-water disposal
- Crude oil pipeline
- Cementing
- Acidizing
- Well servicing
- Horizontal drilling
- Hydrostatic testing
- Riser boost
- Descaling–steel mills
- Boiler feed
- Reverse osmosis
- Hydraulic presses
- Waste disposal
- Slurry pipeline
- Loading
- Recycling
- Mining
Additional Info
- Last usage: Currently in use
- Storage: Outdoors
Conclusion
Refurbishing this heavy-duty pump offers an excellent opportunity to maximize performance while minimizing capital costs. With its robust design, proven operational track record, and broad application scope, the NOV 165-T-5L stands out as a reliable, cost-effective solution for your most challenging pumping needs.
